Black & Blue MaxTow Oil Pressure Gauge

Your Price: $96.99
Item Number:
MT-BDV04
UPC:
842559100431
Gauge Series:
Black & Blue MaxTow Series
Gauge Type:
Oil Pressure
Range of Reading:
0 - 100 PSI
Face Color:
Black
Size:
52mm
Lens:
Clear
Backlighting Color:
Blue
Sending Unit:
Electronic
Measurement Unit:
Standard
Display:
Combo
Instructions:
http://www.maxtow.com/content/instructions/gauges/MT-DV04.pdf
GoogleTitle:
MaxTow 100 PSI Oil Pressure Gauge Kit - Double Vision | Digital & Analog Readings - Electronic Sensor - Black Dial | Blue LED - 52mm | 2-1/16"

MaxTow’s Double Vision™ Series Oil Pressure Gauge is an electronically driven truck gauge that includes an electronic oil pressure sensor which reads and displays your truck’s oil pressure levels from 0 to 100 PSI which allows you to closely monitor your engines oil pressure, in real time, ensuring your bearings, crankshaft, and other vital engine parts stay properly lubricated.

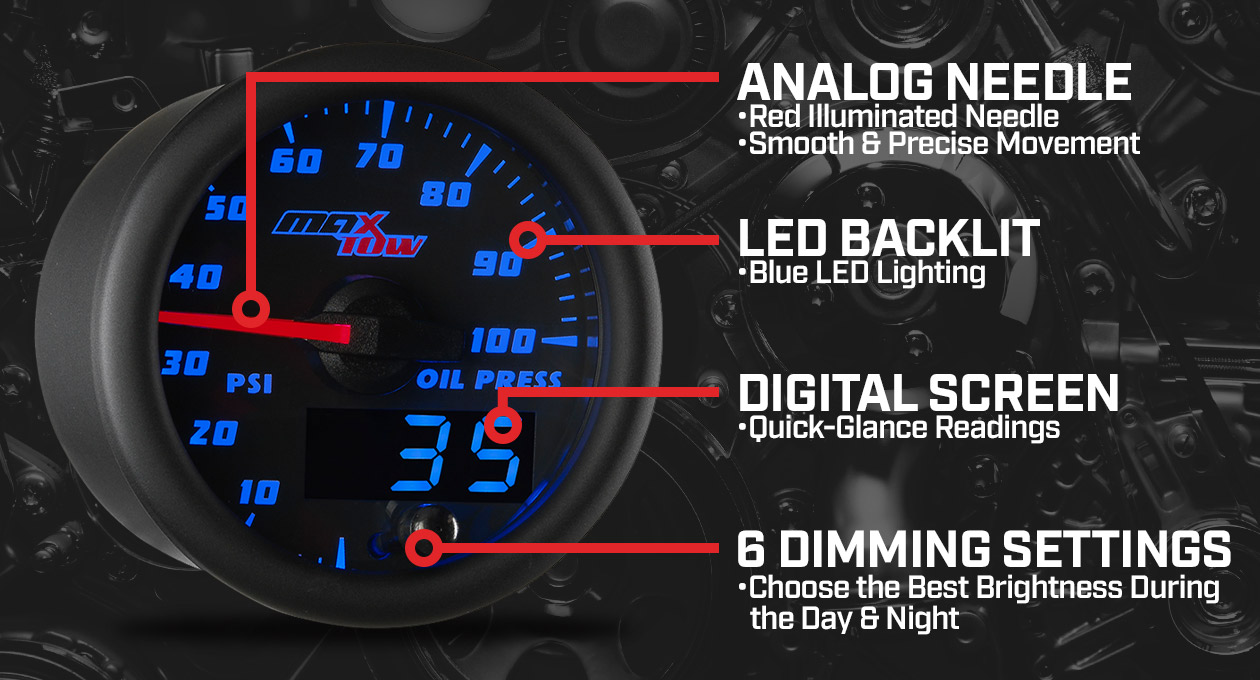

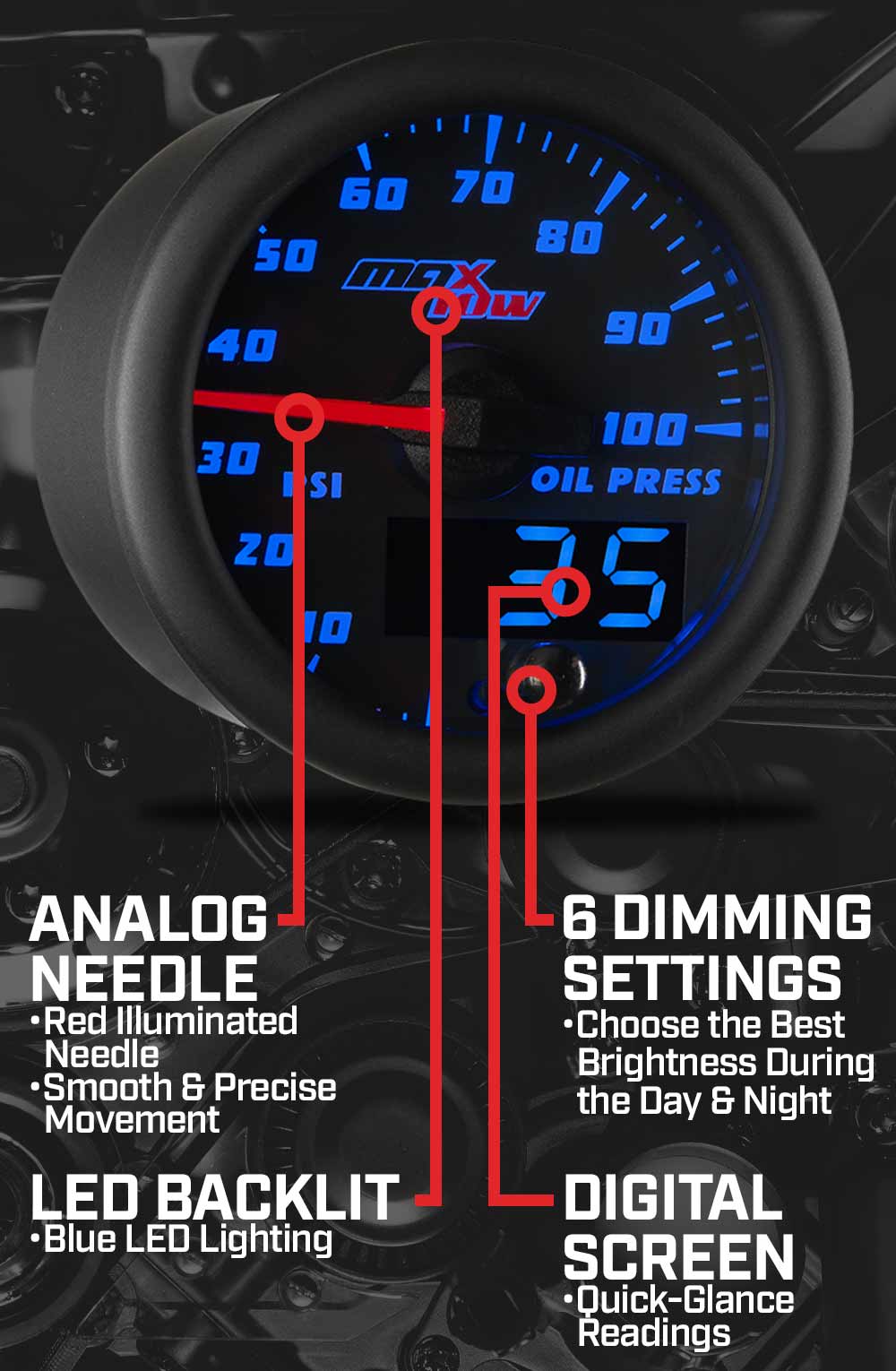

You asked for it and we listened! MaxTow’s Black & Blue Double Vision™ Gauge Series features a black gauge face with dual readout displays which include an analog reading with an illuminated red needle and a quick glance digital display; both of which are illuminated by ultra-bright blue LED lighting. Each 2 1/16” (52mm) gauge is driven by stepper motor technology which allows for exceptionally smooth needle movement that keeps up with the changing statistics of the engine. This oil pressure gauge also features daytime and nighttime dimming modes with 3 customizable settings for each mode. This feature offers multiple dimming options allowing you to set your preference when hitting the road during the day or at night! The included brightness recall function remembers the previous brightness setting that was enabled before powering the truck down so you won’t have to reset it every time you turn the truck on!

MaxTow’s Oil Pressure Gauge includes a 1/8-27 NPT electronic pressure sensor that is easily installed to your engine block, oil cooler, or by using a t-fitting on any oil line. This engine oil pressure gauge also features an extended wire harness for both power (3') and oil pressure sensor (9') connections, assuring that you’ll have more than enough wire for a quick and easy installation. All gauge mounting hardware and installation instructions come standard with every electronic oil pressure gauge purchased, as well as a one year warranty and free lifetime technical support. Get ready to hit the road and Tow to the Max™!

  • 2 1/16" (52mm) Black Face Gauge with a Magnified Lens
  • Gauge Depth Measures 1 5/16"
  • Oil Pressure Reading from 0 to 100 PSI
  • Double Vision Display Feature with Analog and Digital Readings
  • Blue LED Through Dial Lighting with a Red Illuminated Needle
  • Daytime Dimming Mode with 3 Customizable Brightness Settings
  • Nighttime Dimming Mode with 3 Customizable Brightness Settings
  • Electronic Oil Pressure Sensor with 1/8-27 NPT Threads
  • 9' Oil Pressure Sensor Wire
  • 3' Power Wire
  • Mounting Hardware
  • Installation Instructions
  • One Year Limited Warranty
  • Free Lifetime Technical Support
PSI Range of Reading: 0 - 100 PSI
Diameter of Gauge: 2 1/16" or 52mm
Depth of Gauge: 1 5/16" or 33mm
12 Volt Power Required:
Power Wire Harness Length: 3' Power Wire
Sensor Wire Harness Length: 9' Sensor Wire
Included Parts List: Power Harness, Sensor Harness, Pressure Sensor, Mounting Hardware, Gauge Visor and Instructions
Sensor Thread Size: 1/8-27 NPT
Actual Sensor Size: 1 1/4" x 2"
Power Harness Gauge Size: 18 Gauge

Product Reviews

Write a Review
  • Works for me
    5

    Posted by paul jackson on Mar 02, 2017

    I bought this gauge with a water temperature and boost/vacuum gauge after buying a fuel pressure gauge for my Foxbody Mustang. I was impressed with the fuel pressure dual readout so much that I decided to ditch the old school analog mechanical gauges I had in the car for these ones even though they are "designed" for trucks. I really enjoy full sweep gauges and I like the digital readout as well. As far as I know, this is the only gauge like this in the market. A neighbor saw them and wants them for his truck.

    The wiring was easy and straightforward. I like the dual reading and the gauge seems to be great in response and seems to be accurate enough for me to get a feel of the engine temps. The factory brightness for both day and night are fine with me - and I still can dim it more if needed. I like that I can see the face in the daylight even when driving into the sun.

    I didn't encounter any install issues and everything worked perfect the 1st time. Read the instructions are verify what you get versus what you need - you might need an adapter or bushing to set the sending unit into the engine, but knowing about it before you start and getting those pieces makes it a quick and easy install.

  • OIL PRESSURE GAUGE
    5

    Posted by Kyle on Jun 20, 2016

    Install was super easy and took maybe 20 minutes total thanks to the wiring supplied. Gauge works great so far, it's only been installed for a couple days but I love the digital and analog outputs.
