Black & Green MaxTow 30 PSI Boost/Vacuum Gauge

Your Price: $82.99
Item Number:
MT-DV01
UPC:
842559100547
Gauge Series:
Black & Green MaxTow Series
Gauge Type:
Boost
Range of Reading:
30 inHG - 30 PSI
Face Color:
Black
Size:
52mm
Lens:
Clear
Backlighting Color:
Green
Sending Unit:
Electronic
Measurement Unit:
Standard
Display:
Combo
Instructions:
http://www.maxtow.com/content/instructions/gauges/MT-DV01.pdf
GoogleTitle:
MaxTow 30 PSI Turbo Boost Vacuum Gauge Kit - Double Vision | Digital & Analog Readings - Electronic Sensor - Black Dial | Green LED - 52mm | 2-1/16"

MaxTow’s Double Vision™ Boost/Vacuum Gauge is an electronically driven, high-performance gas truck gauge that includes an electronic boost sensor which reads and displays boost pressure levels from 0 to 30 PSI and compression levels from -30 to 0 inHG with unrivaled accuracy while eliminating the need for running a lengthy vacuum hose and t-fitting.

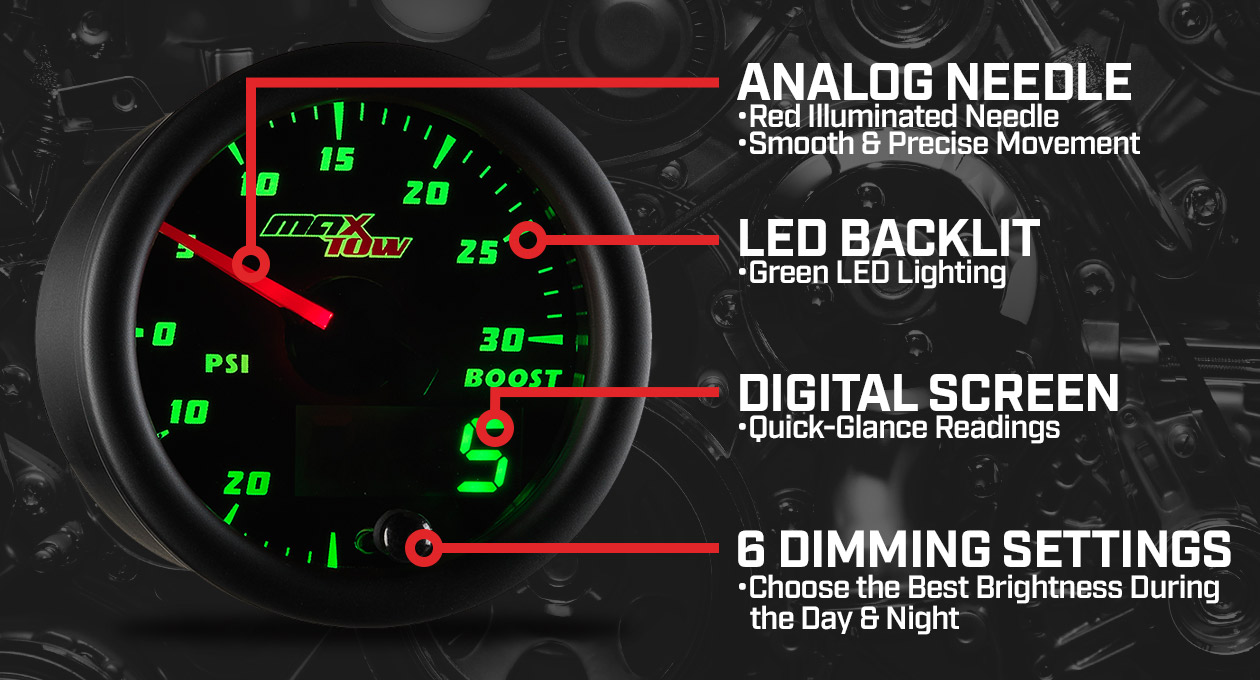

MaxTow’s Double Vision Gauge Series features a green LED display, as well as an illuminated red needle, which will give you the classic look of an analog gauge while also giving you an easy to read green digital numerical readout. The Double Vision Gauge Series offers multiple options and added convenience when reading the output of your truck gauge! This 2 1/16 inch (52mm) boost gauge outperforms the competition by featuring stepper motor technology which allows for all needle movement to be exceptionally smooth and all gauge readings to be extremely accurate, ensuring your truck’s vital parts are functioning properly. This boost gauge also features innovative daytime and nighttime dimming modes with three customizable brightness settings (low, medium, high) for each mode. This gives you multiple dimming options allowing you to your set your individual preference when hitting the road during the day or the late hours of the night! The included brightness recall function will remember the previous brightness setting you had on before powering your vehicle down so you won’t have to reset it every time you turn your vehicle on.

MaxTow’s turbo boost gauge features extended wire harnesses for both power (3 ft) and boost pressure sensor (9 ft) connections, assuring that you’ll have more than enough wire for a quick and easy installation. All gauge mounting hardware and installation instructions come standard with every boost pressure gauge purchased, as well as a one year limited warranty and free lifetime technical support. Get ready to hit the road and Tow to the Max™

  • 2 1/16 Inch Black Face Gauge with a Magnified Lens
  • Gauge Depth Measures 1 5/16 Inches
  • Boost Reading from 0 to 30PSI
  • Vacuum and Compression Levels Between -30 to 0 inHG
  • Double Vision Display Feature with Analog and Digital Readings
  • Green LED Through Dial Lighting with a Red Illuminated Needle
  • Daytime Dimming Mode with 3 Customizable Brightness Settings
  • Nighttime Dimming Mode with 3 Customizable Brightness Settings
  • Electronic Boost Pressure Sensor
  • 9 Foot Boost Pressure Sensor Wire
  • 6 Feet of Vacuum Hose and T-Fitting
  • 3 Foot Power Wire
  • Mounting Hardware
  • Installation Instructions
  • Free Lifetime Technical Support
  • One Year Limited Warranty
Range of Reading: Boost: 0 - 30 PSI
Vacuum: -30 - 0 inHG
Diameter of Gauge: 2 1/16" or 52mm
Depth of Gauge: 1 5/16" or 33mm
12 Volt Power Required:
Power Wire Harness Length: 3 Foot Power Wire
Sensor Wire Harness Length: 9 Foot Sensor Wire
Included Parts List: Power Harness, Sensor Harness, Boost / Vacuum Sensor, Vacuum Line, Plastic Non Restricted T-Fitting, Inline Filter, Hose Clamp, Mounting Hardware, Gauge Visor and Instructions
Sensor Thread Size: 1/8" Inner Diameter T-Fitting
Actual Sensor Size: 2" x 1" x 3/4"
Power Harness Gauge Size: 18 Gauge

Product Reviews

Write a Review
  • calibration changes with elavation
    2

    Posted by R L Thompson on May 04, 2016

    with the engine off ignition on should read 0 but the gauge reads aprox 1 in hg for every 1000 ft gain in elevation so at 6000 ft it reads -6 and the boost reading is way low compaired to my mechanical gauge it is just plain not accurate at any thing above sea leval
