MaxTow’s White Face Double Vision Series Air Pressure Gauge is an electronically driven truck gauge that reads and displays your truck’s air suspension from 0 to 200 PSI with the included air pressure sensor. This allows you to keep a close eye on the changing pressures of your truck’s air brakes or aftermarket air suspension system to ensure you have the bags filled to the proper level.

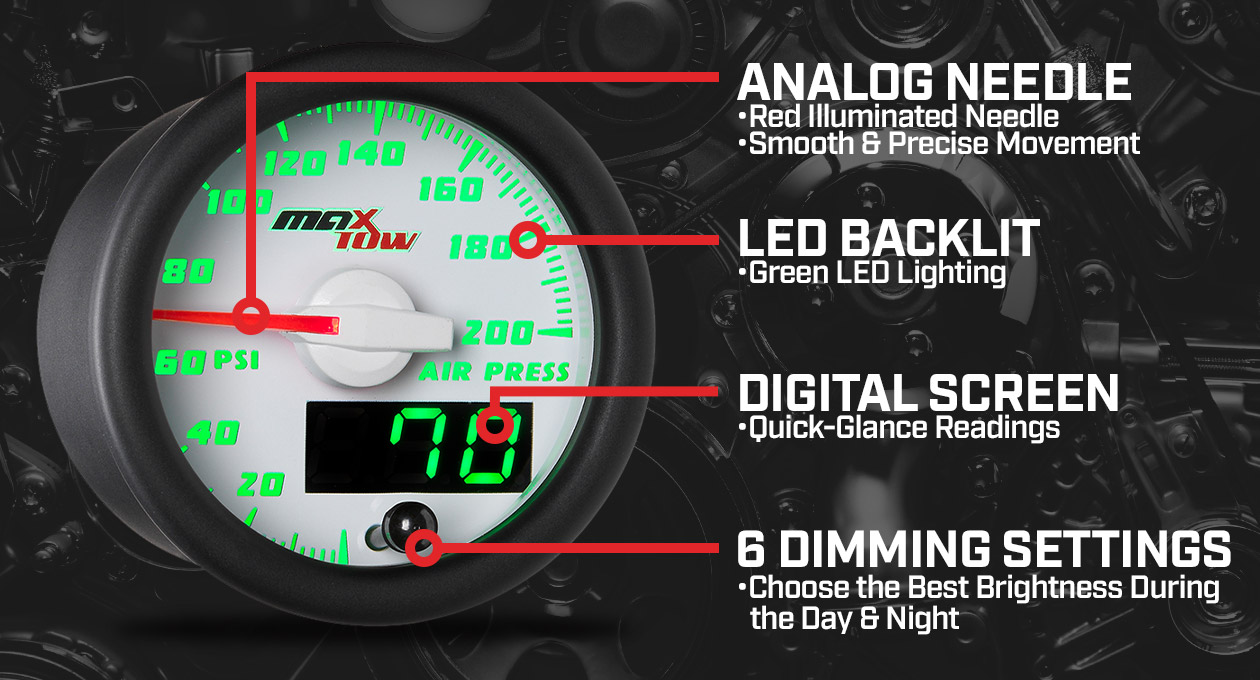

MaxTow’s Double Vision Gauge Series features an analog display with an illuminated red needle, as well as a green digital LED readout that gives you the classic look of an analog gauge with quick glance readings of the digital readout. The Double Vision Gauge Series outperforms the competition by giving you multiple options and added convenience when it comes to monitoring your truck’s most vital functions. This 2 1/16” (52mm) air suspension gauge features stepper motor technology which allows for all needle movement to be extremely smooth with accurate gauge readings. Each MaxTow gauge comes standard with daytime and nighttime dimming modes with three customizable brightness settings (low, medium, high) for each mode, giving you multiple options that allow you to set your preference when hitting the road during the day or the late hours of the night! The brightness recall function will remember the previous setting the gauge was on before powering the truck down so you won’t have to set it every time!
MaxTow’s 200 PSI Air Pressure Gauge includes a 1/8-27 NPT electronic pressure sensor that installs to your air tank, compressor, or pressurized system by simply threading the sensor to the port. This Air Suspension gauge also features extended wire harnesses for both power (3ft) and sensor (9ft) connections assuring that you will have more than enough wire for a quick and complete installation. All gauge mounting hardware and installation instructions comes standard with every air PSI gauge purchase, as well as a one year limited warranty and free lifetime technical support. Get ready to hit the road and Tow to the Max™
|PSI Range of Reading:||0 - 200 PSI|
|Diameter of Gauge:||2 1/16" or 52mm|
|Depth of Gauge:||1 5/16" or 33mm|
|12 Volt Power Required:||✓|
|Power Wire Harness Length:||3 Foot Power Wire|
|Sensor Wire Harness Length:||9 Foot Sensor Wire|
|Included Parts List:||Power Harness, Sensor Harness, Pressure Sensor, Mounting Hardware, Gauge Visor and Instructions|
|Sensor Thread Size:||1/8 NPT|
|Actual Sensor Size:||1 1/4" x 2"|
|Power Harness Gauge Size:||18 Gauge|
