Blue MaxTow Triple Gauge Package for 2003-2008 Ford E-Series Van

Blue MaxTow Triple Gauge Package for 2003-2008 Ford E-Series Van Main
Your Price: $259.99
Item Number:
MT-391-BDV-PKG
UPC:
842559125731
Make:
Ford
Model:
E-Series Van
Pod:
Triple
Size:
52mm
Mount:
A-Pillar
Color:
Black
Year Range:
2003 - 2008
Year:
2003
Year:
2004
Year:
2005
Year:
2006
Year:
2007
Year:
2008
Gauge Series:
Black & Blue MaxTow Series
Gauge Series:
White & Blue MaxTow Series
GoogleTitle:
MaxTow 03-08 Ford E Series Econoline Van 7.3 PowerStroke Blue LED Diesel Gauge Set - Triple Pillar Pod & Mounting Kit - Analog & Digital Readings
MaxTow Custom Gauge Package Features:
Blue MaxTow Double Vision Gauge Series
  • Available in 2-1/16" (52mm) Black Face or White Face Gauge
  • Blue LED Display
  • Daytime Dimming Mode with 3 Customizable Brightness Settings
  • Nighttime Dimming Mode with 3 Customizable Brightness Settings
  • Includes all Senders and Installation Hardware
  • One Year Limited Warranty and Lifetime Technical Support
2003-2008 Ford E-Series Van Triple Pillar Pod
  • Full Size Black Triple Pillar Pod
  • Holds (3) 2-1/16" (52mm) Gauges
  • Crafted from the Highest Quality ABS Plastic Available
  • Includes Mounting Hardware & Instructions
  • One Year Limited Warranty & Free Lifetime Technical Support
MaxTow Double Vision Gauge Series:
Daytime and Nighttime Dimming Modes Featured with MaxTow Gauges

This MaxTow Custom Gauge Package allows you to select 3 truck gauges from MaxTow’s Blue Double Vision™ Gauge Series to install with the included vehicle specific triple pillar pod. The MaxTow Double Vision Gauge Series offers users with a dual readout display that includes a “quick glance” blue LED digital display as well as the classic look of an analog gauge through use of the illuminated red needle. Each gauge features a diameter of 2-1/16" (52mm) and out performs the competition by utilizing the combination of electronic sensors and stepper motor technology that allows for extremely smooth needle movement and precise gauge readings. MaxTow Gauges also feature daytime (d1, d2, d3) and nighttime (n1, n2, n3) dimming modes where you can set your preferred brightness level whether you’re driving during the day or the late hours of the night! The included brightness recall function remembers the previous brightness setting you had selected before powering your truck down so you won’t have to worry about resetting it every time you power your truck on! MaxTow includes extended wire harnesses for both power (3') and sending unit (9') connections to ensure you’ll have more than enough for a complete installation!

Don’t forget to take a moment and check out the available gauges and accessories below to see which are recommended for your truck and engine! Get ready to hit the road and Tow to the Max™!

Gauge Options for Power Stroke:
For Ford Diesel Power Stroke applications MaxTow recommends our 60 PSI Boost Gauge, 1500 Degree Exhaust Gas Temperature Gauge, Transmission Temperature Gauge or 100 PSI Fuel Pressure Gauge.
MaxTow 60 PSI Boost Gauge
60 PSI Boost Gauge
  • Reads Boost from 0-60 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 2' Power Wire Harnesses
  • Electronically Driven
MaxTow 1500 F Pyrometer EGT Gauge
1500° F Pyrometer EGT Gauge
  • Reads Exhaust Temperature from 0-1500° Fahrenheit
  • Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • Includes 2' Power & 6' Sensor Wire Harnesses
  • Waterproof EGT Probe to Sensor Harness Connector
  • Electronically Driven
MaxTow Transmission Temperature Gauge
Transmission Temperature Gauge
  • Reads Transmission Temperature from 80-260° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 9' Sensor & 2' Power Wire Harnesses
  • Recommended For Vehicles with Automatic Transmission
  • Electronically Driven
MaxTow 100 PSI Fuel Pressure Gauge
100 PSI Fuel Pressure Gauge
  • Reads Fuel Pressure from 0-100 PSI
  • 1/8-27 NPT Electronic Fuel Pressure Sensor
  • 9' Sensor & 2' Power Wire Harnesses
  • Electronically Driven
Other Gauge Options Available:
For gasoline van applications, MaxTow recommends our 2200 Degrees Exhaust Gas Temperature Gauge, 100 PSI Fuel Pressure Gauge, Transmission Temperature Gauge or Water Temperature Gauge.
MaxTow 2200 F Exhaust Gas Temperature Gauge
2200° F Exhaust Gas Temperature Gauge
  • Reads Exhaust Temperature from 200-2200° Fahrenheit
  • Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • Includes 2' Power & 6' Sensor Wire Harnesses
  • Waterproof EGT Probe to Sensor Harness Connector
  • Electronically Driven
MaxTow 100 PSI Fuel Pressure Gauge
100 PSI Fuel Pressure Gauge
  • Reads Fuel Pressure from 0-100 PSI
  • 1/8-27 NPT Electronic Fuel Pressure Sensor
  • 9' Sensor & 2' Power Wire Harnesses
  • Electronically Driven
MaxTow Transmission Temperature Gauge
Transmission Temperature Gauge
  • Reads Transmission Temperature from 80-260° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 9' Sensor & 2' Power Wire Harnesses
  • Recommended For Vehicles with Automatic Transmission
  • Electronically Driven
MaxTow Water Temperature Gauge
Water Temperature Gauge
  • Reads Coolant Temperature from 100-280° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 9' Sensor & 2' Power Wire Harnesses
  • Electronically Driven
Triple Pillar Pod Options:
2003-2008 Ford E-Series Black Triple Pillar Pod

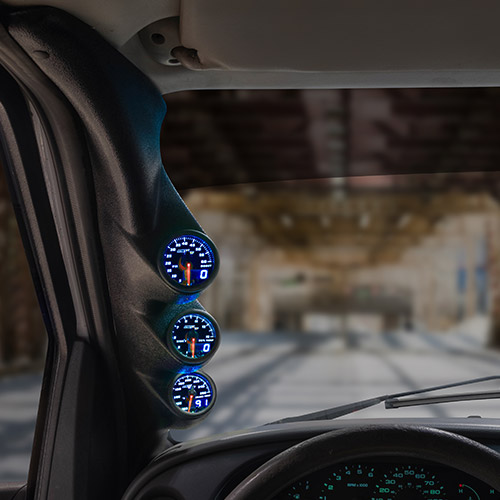

The included black triple pillar pod is specifically designed for the 2003-2008 Ford E-Series Van and is easily mounted to your existing A-pillar giving your vehicle a custom fit and finish. This pod holds (3) 2-1/16" (52mm) gauges, is crafted from the highest quality ABS plastic allowing it to withstand cracking, fading, and warping. MaxTow includes a one year limited warranty and lifetime technical support with each purchase.

Fits: 2003, 2004, 2005, 2006, 2007, 2008 Ford E-Series Van, E-150, E-250, E-350, E-450
1/8-27 NPT Drill & Tap Set
1/8-27 NPT Drill & Tap Set
  • Used for Installing EGT Probe, Boost Fittings or Boost Sensor
  • Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT
  • Includes Size R Drill Bit & 1/8 NPT Tap
MAP Line T-Fitting Adapter
MAP Line T-Fitting Adapter
  • Quick & Easy Install of Boost Hose or Sensor into the 3/16” MAP Line
  • Cut the Line, Insert the T-Fitting & Secure with Included Clamps
  • Avoid Drilling & Tapping the Intake Manifold
  • Female 1/8-27 NPT Thread for Fittings/Sensor
Fuel Pressure Adapter for Ford 6.0L Power Stroke
Fuel Pressure Adapter for Ford 6.0L Power Stroke
  • Quick & Easy Install of Fuel Pressure Sensor to Fuel Filter Housing
  • No Need to Cut Factory Fuel Lines
  • Replaces Pressure Port Fitting
  • Features O-Ring for Leak-Free Seal
  • Female 1/8-27 NPT Thread for Sensor
  • Fits 2003-2007 Ford 6.0L Power Stroke
1/2 Transmission Cooler Line T-Fitting Adapter
1/2” Transmission Cooler Line T-Fitting Adapter
  • Allows Installation of Temperature Sensor to the 1/2" Transmission Cooler Line
  • Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal
  • Female 1/8-27 NPT Thread on T-Fitting for Sensor
3/8 Transmission Cooler Line T-Fitting Adapter
3/8” Transmission Cooler Line T-Fitting Adapter
  • Allows Installation of Temperature Sensor to the 3/8” Transmission Cooler Line
  • Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal
  • Female 1/8-27 NPT Thread on T-Fitting for Sensor
HPOP Gauge Wiring Pigtail Harness
HPOP Gauge Wiring Pigtail Harness
  • Quick & Easy Installation Without Having to Splice or Cut into Factory Wires
  • Connects Directly to Injector Control Pressure (ICP) Sensor
  • Plug & Play
  • Fits 2003-2007 6.0L Power Stroke
Expandable Circuit
Expandable Circuit
  • Quick & Easy Way to Power Gauges Directly from the Fuse Panel
  • Used for Constant & Switched 12 Volt Power for Gauges
  • Includes 4 Amp Fuse for Circuit Protection
MaxTow 3 Gauge Power Wire Harness
MaxTow 3 Gauge Power Wire Harness
  • Used to Easily Power All 3 Gauges from 1 Harness that Connects to Power
  • Daisy Chain Feature with Each Connector Plugging into Each Gauge
  • Prevents Wire Clutter in Fuse Panel, Under the Hood or in the Pillar Pod
  • 6-1/2’ of Total Wire
