Get the ultimate in monitoring capability with MaxTow's Green Double Vision® Series Triple Gauge Package for any 1986-1993 Dodge Ram 1st Generation 12v Cummins. Experience full customization when you select from 15 gauges for this 3-gauge set with many gauges including their required sensors. Utilizing the innovative Double Vision® Gauge Series, you’ll have simultaneous digital and analog readouts on an ultra-bright green LED display with either a black or white gauge face. This package also includes a black Dodge Ram triple pillar or dashboard gauge pod custom made for this year range. So get ready to hit the road and Tow to the Max®!
Gauge Series Details
Color and style combinations are available for complete customization of these high-performance 2-1/16” (52mm) gauges. The Double Vision® Gauge Series gives you the classic look of an analog gauge with an illuminated red needle while simultaneously displaying an easy-to-read digital numeric readout. Choose either a black or white gauge face as a background for showcasing the green LED display. These gauges feature stepper motor technology which allows for smooth needle movement and extremely accurate gauge readings. You’ll also have the option of (3) daytime and (3) nighttime dimming modes with customizable brightness settings (low, medium, high) for each. Choose from a variety of different gauge types which will give you the ability to fully customize this gauge package and monitor multiple engine applications.
Each gauge comes complete with wiring needed for installation as well as electronic sensors for gauges that require a sensor. Included power and sensor harnesses feature extended lengths for more flexibility during installation. Both harnesses easily connect to the back of the gauge by utilizing effortless Plug and Play connectivity. Sensor and sensor wires are also equipped with waterproof connectors to ensure a leak-free seal. Any required mounting hardware is provided in addition to installation instructions and free lifetime tech support to walk you through the process step by step.
Pod Details

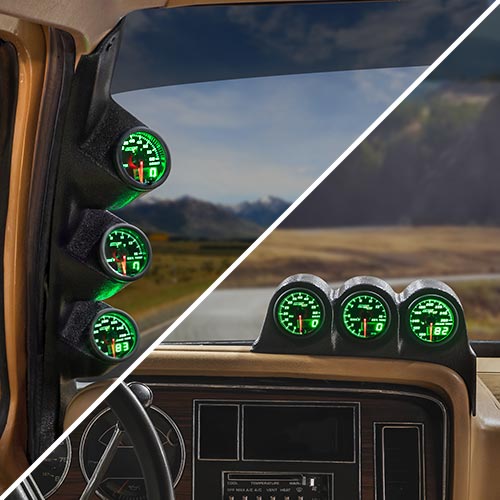

The included Cummins triple pillar gauge pod or triple dash pod is made specifically for the 1986-1993 First Gen Dodge Ram Cummins. Each black Dodge Ram pod holds (3) 2-1/16” (52mm) gauges, and the dash pod features a custom molded mounting plate that seamlessly sits on the curve at the end of the factory dashboard. It is crafted from high quality ABS plastic, allowing it to withstand cracking, fading and warping and can be painted using ABS plastic paint to match your Dodge Ram’s factory interior for a customized fit and finish.
- Easily Mount to the Factory A-Pillar or Dashboard of the 86-93 Dodge Ram
- Experience Quick-Glance Readings from a Convenient Location
- Pinpoint-Precise Readings on a Wide Range of Applications
- Ultra-Bright LED Gauges that Enhance Your Power Stroke Interior
- Includes All Required Mounting Hardware and Instructions
- Black Triple Gauge Pillar or Dashboard Pod
- Holds (3) 2-1/16” (52mm) Gauges
- Extremely Durable and Crafted from High Quality ABS Plastic
- Custom-Made to Fit the 1st Generation Cummins
- One Year Limited Warranty and Free Lifetime Tech Support
Diesel Tech Picks
Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your truck. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with everything you need to monitor and ensure that your truck continues to run optimally for years to come.
- Reads Boost from 0 - 60 PSI
- 1/8-27 NPT Electronic Pressure Sensor
- 9' Sensor & 5’ Power Wire Harnesses
- Reads Exhaust Temperature from 0 - 1500° Fahrenheit
- Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
- Includes 5' Power & 6' Sensor Wire Harnesses
- Waterproof EGT Probe to Sensor Harness Connector
- Reads Fuel Pressure from 0 - 30 PSI
- 1/8-27 NPT Electronic Fuel Pressure Sensor
- 9' Sensor & 5' Power Wire Harnesses
- Reads Transmission Temperature from 80 - 260° Fahrenheit
- 1/8-27 NPT Electronic Temperature Sensor
- 9' Sensor & 5' Power Harnesses
- Waterproof Sensor to Sensor Harness Connector
Fitment Details
Each pod is constructed to specifically install to any 1986-1993 Dodge Ram truck. That includes any individual model years within this range for the 1st Generation Cummins. Combined with a straightforward installation process, First Gen Cummins Gauge Pod will fit the factory A-Pillar or dash and blend in seamlessly with the factory interior.
Year |
Make |
Model |
Engine |
1986 |
Dodge |
Ram, 1500, 2500, 3500, D/W 100, D/W 250, D/W 350 |
All Engines |
1987 |
Dodge |
Ram, 1500, 2500, 3500, D/W 100, D/W 250, D/W 350 |
All Engines |
1988 |
Dodge |
Ram, 1500, 2500, 3500, D/W 100, D/W 250, D/W 350 |
All Engines |
1989 |
Dodge |
Ram, 1500, 2500, 3500, D/W 100, D/W 250, D/W 350 |
12 Valve Cummins |
1990 |
Dodge |
Ram, 1500, 2500, 3500, D/W 100, D/W 250, D/W 350 |
12 Valve Cummins |
1991 |
Dodge |
Ram, 1500, 2500, 3500, D/W 100, D/W 250, D/W 350 |
12 Valve Cummins |
1992 |
Dodge |
Ram, 1500, 2500, 3500, D/W 100, D/W 250, D/W 350 |
12 Valve Cummins |
1993 |
Dodge |
Ram, 1500, 2500, 3500, D/W 100, D/W 250, D/W 350 |
12 Valve Cummins |
1/8-27 NPT Drill & Tap Set
- Used for Installing EGT Probe, Boost Fittings or Boost Sensor
- Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT
- Includes Size R Drill Bit & 1/8 NPT Tap
|
Banjo Bolt Adapter for 12V VE Pump Cummins
- Easy Install of Fuel Pressure Sensor to Fuel Filter Housing
- Replaces the Factory Banjo Bolt
- Includes 2 Crush Washers for Secure Fit
- Female 1/8-27 NPT Thread for Sensor
- Fits 1989-1993 Dodge Ram 12V VE Pump Cummins
|
Snubber Valve
- Regulates, Normalizes & Eliminates Fuel Pressure Spikes During Startup
- Protects Pressure Sensor from Spikes/Water Hammer Effect
- Installs Between Fuel Filter Housing & Sensor
- High-Quality Brass Design – Built to Last
- Male & Female 1/8-27 NPT Threads
|
Banjo Bolt + Snubber Valve Combo for 12 Valve Cummins
- Easy Install of Fuel Pressure Sensor to Fuel Filter Housing
- All-in-One Design – Less Chance of Leaks Between Fittings
- Snubber Valve Protects Pressure Sensor from Spikes/Water Hammer Effect
- Replaces the Factory Banjo Bolt
- Includes 2 Crush Washers for Secure Fit
- Female 1/8-27 NPT Thread for Sensor
- Fits 1989-1993 Dodge Ram 12V VE Pump Cummins
|
Test Port Adapter for A727
- Quick & Easy Install of Temperature Sensor to Transmission Test Port
- Threads onto Temperature Sensor for Protection from Internal Transmission Parts
- No Modifications to Transmission Necessary
- Female 1/8-27 NPT Thread for Sensor
- Fits Dodge Ram Cummins with A727 Transmission
|
1/2” Transmission Cooler Line T-Fitting Adapter
- Allows Installation of Temperature Sensor to the 1/2" Transmission Cooler Line
- Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal
- Female 1/8-27 NPT Thread on T-Fitting for Sensor
|
Expandable Circuit
- Quick & Easy Way to Power Gauges Directly from the Fuse Panel
- Used for Constant & Switched 12 Volt Power for Gauges
- Includes 4 Amp Fuse for Circuit Protection
|
MaxTow 3 Gauge Power Wire Harness
- Used to Easily Power All 3 Gauges from 1 Harness that Connects to Power
- Daisy Chain Feature with Each Connector Plugging into Each Gauge
- Prevents Wire Clutter in Fuse Panel, Under the Hood or in the Pillar Pod
- 6-1/2’ of Total Wire
|
60 PSI Boost
1500° F Pyrometer EGT
Transmission Temperature
30 PSI Fuel Pressure
Instruction Options
This MaxTow Double Vision® Series Triple Gauge Package comes with product instructions that provide complete details on how to install your gauges and pod for the 1986-1993 1st Generation Dodge Ram 12v Cummins. You can also view our installation videos which include step-by-step tutorials and useful tips on how to install several MaxTow products.
Gauge Pod Install Guide
|
Gauge Set Install Guide
|
Select Your Gauges
Select your gauges from a variety of different gauge types below which are available for this MaxTow Double Vision® Series Gauge Package. You can also reference our Tech Picks at the beginning of this list for our top recommendations that are specific to this vehicle. With gauges made to monitor a wide range of engine applications, MaxTow is sure to have the types of gauge you’re looking for as part of this custom package.
- Reads Boost from 0 - 30 PSI
- Reads Vacuum & Compression Levels from -30 - 0 inHG
- 6' Hose & T-Fitting
- 9' Sensor & 5' Power Wire Harnesses
- Reads Boost from 0 - 35 PSI
- 1/8-27 NPT Electronic Pressure Sensor
- 9' Sensor & 5' Power Wire Harnesses
- Reads Boost from 0 - 60 PSI
- 1/8-27 NPT Electronic Pressure Sensor
- 9' Sensor & 5’ Power Wire Harnesses
- Reads Boost from 0 - 100 PSI
- 1/8-27 NPT Electronic Pressure Sensor
- 9' Sensor & 5’ Power Wire Harnesses
- Reads Air/Fuel Ratio from 10.0 - 20.0
- Wideband Oxygen Sensor
- Digital Wideband Controller Unit with Data Logging
- Weld-In Sensor Bung
- Power & Sensor Wire Harnesses
- Reads Oil Pressure from 0 - 100 PSI
- 1/8-27 NPT Electronic Oil Pressure Sensor
- 9' Sensor & 5' Power Wire Harnesses
- Reads Vehicle Electrical System Voltages from 8 - 18 DC Volts
- 5' Power Wire Harness
Water (Coolant) Temperature
- Reads Water Temperature from 100 - 280° Fahrenheit
- 1/8-27 NPT Electronic Temperature Sensor
- 9' Sensor & 5' Power Harnesses
- Waterproof Sensor to Sensor Harness Connector
- Reads Oil Temperature from 100 - 280° Fahrenheit
- 1/8-27 NPT Electronic Temperature Sensor
- 9' Sensor & 5' Power Harnesses
- Waterproof Sensor to Sensor Harness Connector
- Reads Exhaust Temperature from 0 - 1500° Fahrenheit
- Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
- Includes 5' Power & 6' Sensor Wire Harnesses
- Waterproof EGT Probe to Sensor Harness Connector
2200° F Exhaust Gas Temperature
- Reads Exhaust Temperature from 200 - 2200° Fahrenheit
- Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
- Includes 5' Power & 6' Sensor Wire Harnesses
- Waterproof EGT Probe to Sensor Harness Connector
- Reads Vehicle’s RPM from 0 - 10,000
- 1 - 10 Cylinder Setting Switch on Back of Gauge
- 9’ Source & 5' Power Wire Harnesses
- Reads Fuel Pressure from 0 - 15 PSI
- 1/8-27 NPT Electronic Fuel Pressure Sensor
- 9' Sensor & 5' Power Wire Harnesses
- Reads Fuel Pressure from 0 - 30 PSI
- 1/8-27 NPT Electronic Fuel Pressure Sensor
- 9' Sensor & 5' Power Wire Harnesses
- Reads Fuel Pressure from 0 - 100 PSI
- 1/8-27 NPT Electronic Fuel Pressure Sensor
- 9' Sensor & 5' Power Wire Harnesses
- Reads Transmission Temperature from 80 - 260° Fahrenheit
- 1/8-27 NPT Electronic Temperature Sensor
- 9' Sensor & 5' Power Harnesses
- Waterproof Sensor to Sensor Harness Connector
- Reads Air Pressure from 0 - 200 PSI
- 1/8-27 NPT Electronic Pressure Sensor
- 9' Sensor & 5' Power Wire Harnesses
- Reads NOS Pressure from 0 - 1,600 PSI
- 1/8-27 NPT Electronic Pressure Sensor
- 9' Sensor & 5' Power Wire Harnesses
- Reads Fuel Rail Pressure from 0 - 30,000 PSI
- 9' Sensor & 5' Power Wire Harnesses
- Compatible with 2004-2018 Dodge Ram 5.9L & 6.7L Cummins Engines
- Compatible with 2002-2016 GM 6.6L Duramax Engine
- Reads HPOP from 0 - 4,000 PSI
- 9' Sensor & 5' Power Wire Harnesses
- Compatible with 7.3L & 6.0L Ford Power Stroke
- Reads Diff Temperature from 100 - 250° Fahrenheit
- 1/8-27 NPT Electronic Temperature Sensor
- 9' Sensor & 5' Power Harnesses
- Waterproof Sensor to Sensor Harness Connector
- Reads Coolant Pressure from 0 - 35 PSI
- 1/8-27 NPT Electronic Pressure Sensor
- 9' Sensor & 5' Power Wire Harnesses
- Reads Intake Temperature from 0 - 300° Fahrenheit
- 3/8-18 NPT Electronic Air Temperature Sensor
- 9' Sensor & 5' Power Harnesses
- Waterproof Sensor to Sensor Harness Connector
- Reads Outside Air Temperature from -20 - 120° Fahrenheit
- Electronic Air Temperature Sensor
- 18' Sensor & 5' Power Harnesses
Optional Installation Accessories:
Looking for an adapter that helps simplify the install process? Or maybe you need a little more slack as you’re setting up your gauge kit. MaxTow carries a wide variety of accessories to help with the installation of your gauge package. Choose from a diverse selection of adapters, wiring harnesses, drill & tap kits and more that will cover everything you need and make the process even easier as you install your gauges.
