Replacement Temperature Sensor

Your Price: $14.99
Item Number:
MT-TS-01
UPC:
842559109489
Gauge Type:
Water Temperature
Gauge Type:
Transmission Temperature
Gauge Type:
Oil Temperature
Gauge Type:
Differential Temperature
Part:
Sensor

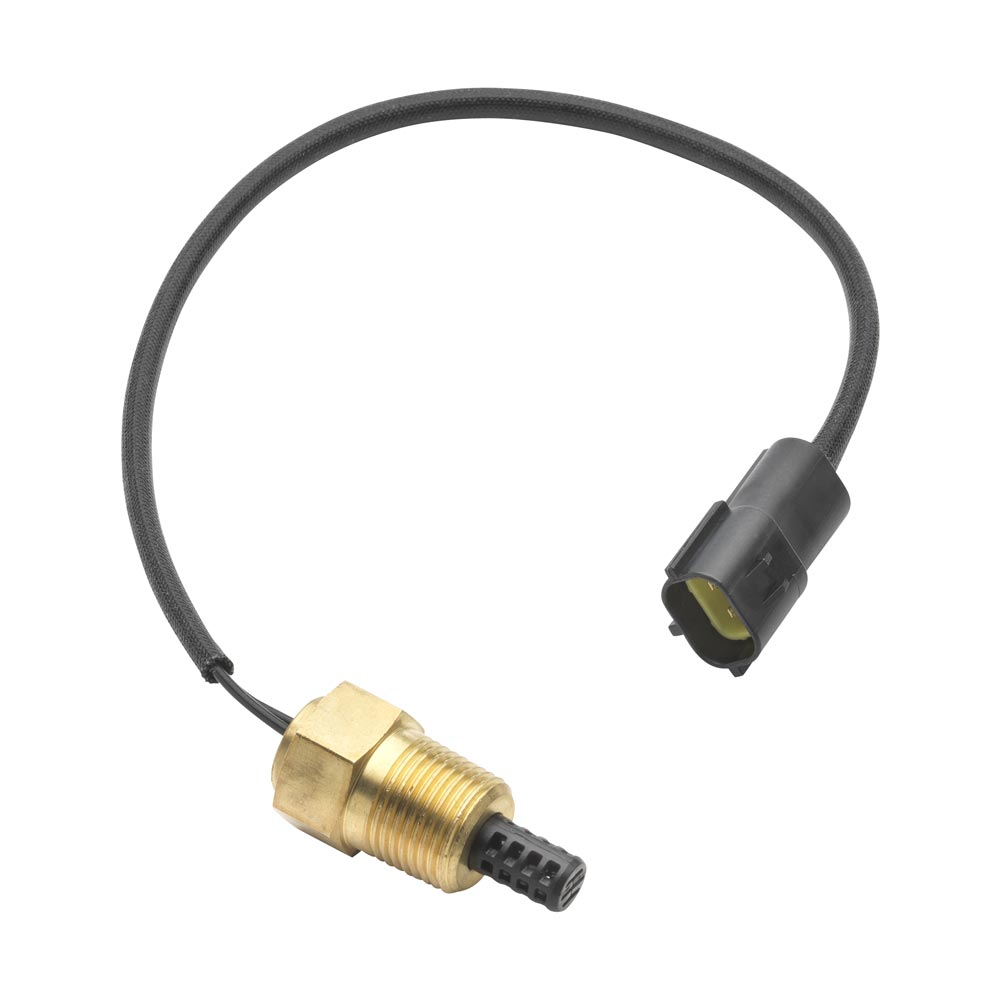

MaxTow's Replacement Temperature Sensor will replace the existing sensor unit for your MaxTow Water, Oil, Transmission or Differential Temperature Gauge. The sensor features a 1/8-27 NPT male thread that threads into it's mounting location source.

There are 2 versions of this sensor available. Please verify which type you have before purchasing this replacement unit.

The Version 1 Temperature Sensor features male and female terminal connectors that connect to the terminal connectors of the sensor harness that plugs into the back of the gauge.

The Version 2 Temperature Sensor features a 2 pin waterproof connector on the end that connects to the sensor harness that plugs into the back of the gauge.

Compatible with:

  • Water Temperature
    MT-DV06, MT-WDV06, MT-BDV06, MT-WBDV06
  • Oil Temperature
    MT-DV07, MT-WDV07, MT-BDV07, MT-WBDV07
  • Transmission Temperature
    MT-DV12, MT-WDV12, MT-BDV12, MT-WBDV12
  • Differential Temperature
    MT-DV22, MT-WDV22, MT-BDV22, MT-WBDV22

Product Reviews

Write a Review
  • Direct Replacement
    5

    Posted by Unknown on Jun 26, 2019

    Purchased this part to replace a damaged Max Tow sensor on a used truck I purchased. Sensor and wire harness arrived quickly, installed easily, and was an exact match. Now my temp gauge reads perfectly again.

  • Transmision Thermostat
    5

    Posted by David on Oct 04, 2017

    Just what I needed to get the transmission gauge to work correctly. Thanks

  • Worked perfectly
    5

    Posted by Dan on Mar 30, 2017

    Trans gauge was stuck or not working lights were flickering on glow gauge , sensor was exact replacement 15 min and good to go

  • Works great
    5

    Posted by Steve b on Mar 14, 2017

    My trans temp gauge was stuck on 260. And it would jump up and down, and the gauge itself would turn on and off. I purchased this sensor, replaced it, and its all back to normal. Thanks
