Green MaxTow Dual Gauge Package for 1999-2007 Ford Super Duty Power Stroke

Your Price: $194.99
Item Number:
MT-2205-DV-PKG
UPC:
842559109021
Make:
Ford
Model:
Super Duty
Pod:
Dual
Size:
52mm
Mount:
A-Pillar
Color:
Black
Color:
Gray
Color:
Tan
Year Range:
1999 - 2007
Year:
1999
Year:
2000
Year:
2001
Year:
2002
Year:
2003
Year:
2004
Year:
2005
Year:
2006
Year:
2007
Gauge Series:
Black & Green MaxTow Series
Gauge Series:
White & Green MaxTow Series
GoogleTitle:
MaxTow 99-07 Ford 7.3 6.0 PowerStroke Super Duty F250 F350 Green LED Diesel Gauge Set - Dual Pillar Pod & Mounting Kit - Analog & Digital Readings
Product Returns
Product Support
Product Warranty
Overview

Get the ultimate in monitoring capability with MaxTow's Green Double Vision® Series Dual Gauge Package for the 1999-2007 Ford Super Duty F-250/F-350 with a 6.0L or 7.3L Power Stroke. Experience complete customization when you select from 15 gauges for this 2-gauge set with many gauges including their required sensors. Utilizing the innovative Double Vision® Gauge Series, you’ll have simultaneous digital and analog readouts on an ultra-bright green LED display with either a black or white gauge face. This package also includes your choice between a black, factory color matched tan or factory color matched gray Ford Super Duty full size dual pillar pod. So get ready to hit the road and Tow to the Max®!


Gauge Series Details

MaxTow Gauge Series Details
MaxTow Gauge Series Details

Color and style combinations are available for complete customization of these high-performance 2-1/16” (52mm) gauges. The Double Vision® Gauge Series gives you the classic look of an analog gauge with an illuminated red needle while simultaneously displaying an easy-to-read digital numeric readout. Choose either a black or white gauge face as a background for showcasing the green LED display. These gauges feature stepper motor technology which allows for smooth needle movement and extremely accurate gauge readings. You’ll also have the option of (3) daytime and (3) nighttime dimming modes with customizable brightness settings (low, medium, high) for each. Choose from a variety of different gauge types which will give you the ability to fully customize this gauge package and monitor multiple engine applications.

MaxTow Gauge Wiring
MaxTow Gauge Wiring

Each gauge comes complete with wiring needed for installation as well as electronic sensors for gauges that require a sensor. Included power and sensor harnesses feature extended lengths for more flexibility during installation. Both harnesses easily connect to the back of the gauge by utilizing effortless Plug and Play connectivity. Sensor and sensor wires are also equipped with waterproof connectors to ensure a leak-free seal. Any required mounting hardware is provided in addition to installation instructions and free lifetime tech support to walk you through the process step by step.


Pod Details

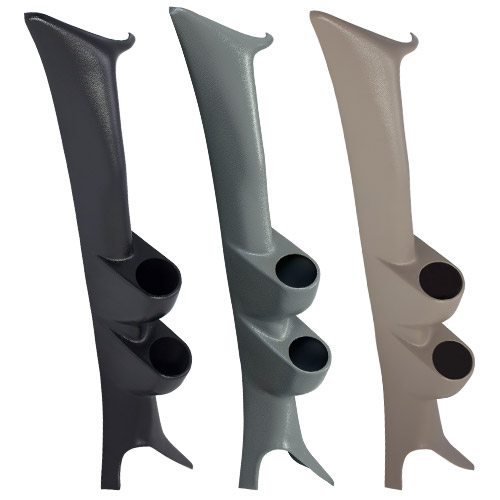

The included full size, factory matched dual pillar pod is made specifically for the 1999-2007 Ford Super Duty F-250 and F-350 with either a 6.0L or 7.3L Power Stroke engine. Select from black, factory-color matched gray or factory color-matched tan, and this pod is constructed as an overlay that mounts to the Super Duty’s factory A-pillar. This Ford truck pillar gauge pod holds (2) 2-1/16” (52mm) gauges and is crafted from high quality ABS plastic, allowing it to withstand cracking, fading and warping. The black version of the pod can also be painted if needed using ABS plastic paint to match your Power Stroke’s factory interior for a fully customized fit and finish.

Ford SuperDuty Installed Gauge Pod
  • Easily Mount to the Factory A-Pillar of the 99-07 Super Duty
  • Experience Quick-Glance Readings from a Convenient Location
  • Pinpoint-Precise Readings on a Wide Range of Applications
  • Ultra-Bright LED Gauges that Enhance Your Power Stroke Interior
  • Includes All Required Mounting Hardware and Instructions
Ford SuperDuty Gauge Pod
  • Full Size Black, Factory Color Matched Gray or Factory Color Matched Tan Dual Pillar Pod
  • Holds (2) 2-1/16” (52mm) Gauges
  • Extremely Durable and Crafted from High Quality ABS Plastic
  • Custom-Made to Fit the 99-07 Power Stroke
  • One Year Limited Warranty and Free Lifetime Tech Support

Diesel Tech Picks

Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your truck. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with everything you need to monitor and ensure that your truck continues to run optimally for years to come.

60 PSI Boost
60 PSI Boost
  • Reads Boost from 0 - 60 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 5’ Power Wire Harnesses
1500° F Pyrometer EGT
1500° F Pyrometer EGT
  • Reads Exhaust Temperature from 0 - 1500° Fahrenheit
  • Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • Includes 5' Power & 6' Sensor Wire Harnesses
  • Waterproof EGT Probe to Sensor Harness Connector
100 PSI Fuel Pressure
100 PSI Fuel Pressure
  • Reads Fuel Pressure from 0 - 100 PSI
  • 1/8-27 NPT Electronic Fuel Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses
Transmission Temperature
Transmission Temperature
  • Reads Transmission Temperature from 80 - 260° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 9' Sensor & 5' Power Harnesses
  • Waterproof Sensor to Sensor Harness Connector

Fitment Details

Whether you decide on the black, factory color matched gray or factory color matched tan version of these pillar gauge pods, each pod is custom-made to be a factory fit for the 1999-2007 Ford Super Duty full size truck. That includes any individual model years within this range for both the F-250 and F-350 with a 6.0L or 7.3L Power Stroke diesel engine. Combined with a straightforward installation process, these Super Duty pillar gauge pods will seamlessly mount to the factory A-pillar to match this Ford truck’s factory interior.

Year Make Model Engine
1999 Ford Super Duty, F-250 & F-350 7.3L Power Stroke
2000 Ford Super Duty, F-250 & F-350 7.3L Power Stroke
2001 Ford Super Duty, F-250 & F-350 7.3L Power Stroke
2002 Ford Super Duty, F-250 & F-350 7.3L Power Stroke
2003 Ford Super Duty, F-250 & F-350 6.0L Power Stroke
2004 Ford Super Duty, F-250 & F-350 6.0L Power Stroke
2005 Ford Super Duty, F-250 & F-350 6.0L Power Stroke
2006 Ford Super Duty, F-250 & F-350 6.0L Power Stroke
2007 Ford Super Duty, F-250 & F-350 6.0L Power Stroke
1/8-27 NPT Drill & Tap Set
1/8-27 NPT Drill & Tap Set
  • Used for Installing EGT Probe, Boost Fittings or Boost Sensor
  • Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT
  • Includes Size R Drill Bit & 1/8 NPT Tap
MAP Line T-Fitting Adapter
MAP Line T-Fitting Adapter
  • Quick & Easy Install of Boost Hose or Sensor into the 3/16” MAP Line
  • Cut the Line, Insert the T-Fitting & Secure with Included Clamps
  • Avoid Drilling & Tapping the Intake Manifold
  • Female 1/8-27 NPT Thread for Fittings/Sensor
  • Fits 1999-2002 Ford 7.3L Power Stroke
  • Fits 2003-2007 Ford 6.0L Power Stroke
Air Intake Heater Boost Plug Adapter
Air Intake Heater Boost Plug Adapter
  • Quick & Easy Install of Boost Hose or Sensor to the Air Intake
  • Remove the Restrictive Heater Plug & Thread Adapter in its Place
  • No Drilling or Tapping Required
  • Female 1/8-27 NPT Thread for Fittings/Sensor
  • Fits 1999.5-2002 Ford Super Duty 7.3L Power Stroke
Fuel Pressure Adapter for Ford 6.0L Power Stroke
Fuel Pressure Adapter for Ford 6.0L Power Stroke
  • Quick & Easy Install of Fuel Pressure Sensor to Fuel Filter Housing
  • No Need to Cut Factory Fuel Lines
  • Replaces Pressure Port Fitting
  • Features O-Ring for Leak-Free Seal
  • Female 1/8-27 NPT Thread for Sensor
  • Fits 2003-2007 Ford 6.0L Power Stroke
Fuel Pressure Adapter for Ford 7.3L Power Stroke
Fuel Pressure Adapter for Ford 7.3L Power Stroke
  • Quick & Easy Install of Fuel Pressure Sensor to Fuel Filter Housing
  • No Need to Cut Factory Fuel Lines
  • Replaces Pressure Port Fitting
  • Features O-Ring for Leak-Free Seal
  • Female 1/8-27 NPT Thread for Sensor
  • Fits 1999-2002 Ford 7.3L Power Stroke
1/2 Transmission Cooler Line T-Fitting Adapter
1/2” Transmission Cooler Line T-Fitting Adapter
  • Allows Installation of Temperature Sensor to the 1/2" Transmission Cooler Line
  • Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal
  • Female 1/8-27 NPT Thread on T-Fitting for Sensor
3/8 Transmission Cooler Line T-Fitting Adapter
3/8” Transmission Cooler Line T-Fitting Adapter
  • Allows Installation of Temperature Sensor to the 3/8” Transmission Cooler Line
  • Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal
  • Female 1/8-27 NPT Thread on T-Fitting for Sensor
HPOP Gauge Wiring Pigtail Harness
HPOP Gauge Wiring Pigtail Harness
  • Quick & Easy Installation Without Having to Splice or Cut into Factory Wires
  • Connects Directly to Injector Control Pressure (ICP) Sensor
  • Plug & Play
  • Fits 1999-2002 7.3L Power Stroke
  • Fits 2003-2007 7.3L Power Stroke
Expandable Circuit
Expandable Circuit
  • Quick & Easy Way to Power Gauges Directly from the Fuse Panel
  • Used for Constant & Switched 12 Volt Power for Gauges
  • Includes 4 Amp Fuse for Circuit Protection
MaxTow 2 Gauge Power Wire Harness
MaxTow 2 Gauge Power Wire Harness
  • Used to Easily Power 2 Gauges from 1 Harness that Connects to Power
  • Daisy Chain Feature with Each Connector Plugging into Each Gauge
  • Prevents Wire Clutter in Fuse Panel, Under the Hood or in the Pillar Pod
  • 6-1/2’ of Total Wire

Instruction Options

This MaxTow Double Vision® Series Dual Gauge Package comes with product instructions that provide complete details on how to install your gauges and pod for the 1999-2007 Ford Super Duty F-250 and F-350 with a 6.0L or 7.3L Power Stroke engine. You can also view our installation videos which include step-by-step tutorials and useful tips on how to install several MaxTow products.

Gauge Pod Install Guide Gauge Pod PDF Instructions Gauge Set Install Guide Gauge Set PDF Instructions
Gauge Types

Select Your Gauges

Select your gauges from a variety of different gauge types below which are available for this MaxTow Double Vision® Series Gauge Package. You can also reference our Tech Picks at the beginning of this list for our top recommendations that are specific to this vehicle. With gauges made to monitor a wide range of engine applications, MaxTow is sure to have the types of gauge you’re looking for as part of this custom package.

Tech Pick
30 PSI Boost/Vacuum
30 PSI Boost/Vacuum
  • Reads Boost from 0 - 30 PSI
  • Reads Vacuum & Compression Levels from -30 - 0 inHG
  • 6' Hose & T-Fitting
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
35 PSI Boost
35 PSI Boost
  • Reads Boost from 0 - 35 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
60 PSI Boost
60 PSI Boost
  • Reads Boost from 0 - 60 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 5’ Power Wire Harnesses
Tech Pick
100 PSI Boost
100 PSI Boost
  • Reads Boost from 0 - 100 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 5’ Power Wire Harnesses
Tech Pick
Needle Wideband Air/Fuel Ratio
Wideband Air/Fuel Ratio
  • Reads Air/Fuel Ratio from 10.0 - 20.0
  • Wideband Oxygen Sensor
  • Digital Wideband Controller Unit with Data Logging
  • Weld-In Sensor Bung
  • Power & Sensor Wire Harnesses
Tech Pick
Oil Pressure
Oil Pressure
  • Reads Oil Pressure from 0 - 100 PSI
  • 1/8-27 NPT Electronic Oil Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
Volt Gauge
Volt Gauge
  • Reads Vehicle Electrical System Voltages from 8 - 18 DC Volts
  • 5' Power Wire Harness
Tech Pick
Water (Coolant) Temperature
Water (Coolant) Temperature
  • Reads Water Temperature from 100 - 280° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 9' Sensor & 5' Power Harnesses
  • Waterproof Sensor to Sensor Harness Connector
Tech Pick
Oil Temperature
Oil Temperature
  • Reads Oil Temperature from 100 - 280° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 9' Sensor & 5' Power Harnesses
  • Waterproof Sensor to Sensor Harness Connector
Tech Pick
1500° F Pyrometer EGT
1500° F Pyrometer EGT
  • Reads Exhaust Temperature from 0 - 1500° Fahrenheit
  • Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • Includes 5' Power & 6' Sensor Wire Harnesses
  • Waterproof EGT Probe to Sensor Harness Connector
Tech Pick
2200° F Exhaust Gas Temperature
2200° F Exhaust Gas Temperature
  • Reads Exhaust Temperature from 200 - 2200° Fahrenheit
  • Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • Includes 5' Power & 6' Sensor Wire Harnesses
  • Waterproof EGT Probe to Sensor Harness Connector
Tech Pick
Tachometer
Tachometer
  • Reads Vehicle’s RPM from 0 - 10,000
  • 1 - 10 Cylinder Setting Switch on Back of Gauge
  • 9’ Source & 5' Power Wire Harnesses
Tech Pick
15 PSI Fuel Pressure
15 PSI Fuel Pressure
  • Reads Fuel Pressure from 0 - 15 PSI
  • 1/8-27 NPT Electronic Fuel Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
30 PSI Fuel Pressure
30 PSI Fuel Pressure
  • Reads Fuel Pressure from 0 - 30 PSI
  • 1/8-27 NPT Electronic Fuel Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
100 PSI Fuel Pressure
100 PSI Fuel Pressure
  • Reads Fuel Pressure from 0 - 100 PSI
  • 1/8-27 NPT Electronic Fuel Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
Transmission Temperature
Transmission Temperature
  • Reads Transmission Temperature from 80 - 260° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 9' Sensor & 5' Power Harnesses
  • Waterproof Sensor to Sensor Harness Connector
Tech Pick
Air Pressure
Air Pressure
  • Reads Air Pressure from 0 - 200 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
Nitrous Pressure
Nitrous Pressure
  • Reads NOS Pressure from 0 - 1,600 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
Rail Pressure
Rail Pressure
  • Reads Fuel Rail Pressure from 0 - 30,000 PSI
  • 9' Sensor & 5' Power Wire Harnesses
  • Compatible with 2004-2018 Dodge Ram 5.9L & 6.7L Cummins Engines
  • Compatible with 2002-2016 GM 6.6L Duramax Engine
Tech Pick
HPOP Gauge
HPOP Gauge
  • Reads HPOP from 0 - 4,000 PSI
  • 9' Sensor & 5' Power Wire Harnesses
  • Compatible with 7.3L & 6.0L Ford Power Stroke
Tech Pick
Differential Temperature
Differential Temperature
  • Reads Diff Temperature from 100 - 250° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 9' Sensor & 5' Power Harnesses
  • Waterproof Sensor to Sensor Harness Connector
Tech Pick
Coolant Pressure
Coolant Pressure
  • Reads Coolant Pressure from 0 - 35 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
Intake Temperature
Intake Temperature
  • Reads Intake Temperature from 0 - 300° Fahrenheit
  • 3/8-18 NPT Electronic Air Temperature Sensor
  • 9' Sensor & 5' Power Harnesses
  • Waterproof Sensor to Sensor Harness Connector
Add-Ons

Optional Installation Accessories:

Looking for an adapter that helps simplify the install process? Or maybe you need a little more slack as you’re setting up your gauge kit. MaxTow carries a wide variety of accessories to help with the installation of your gauge package. Choose from a diverse selection of adapters, wiring harnesses, drill & tap kits and more that will cover everything you need and make the process even easier as you install your gauges.

Instructions

Product Reviews

Write a Review
  • Gauges look and work great
    4

    Posted by Bruce on Dec 13, 2017

    After the install is complete the gauges look and work great. The boost gauge is an electronic gauge so it is able to filter out all of the needle shake and you truly get a accurate and stable boost reading. The plastic pillar cover on the other hand was not as nice. It did not fit over the stock pillar cover (99 F250) without doing a little sanding and grinding, with modern manufacturing that part could be better, but a little time to clean it up and make it fit the pillar cover went together and now looks great. Overall it took about 8 hours install the sensors, run the harness, and mount the gauges.

  • Awesome product, easy to follow instructions.
    5

    Posted by John M on Aug 21, 2017

    Gauges are great. The instructions were extremely easy to follow. Fitment is great. You won't be disappointed!

HAUL IN THE DEALS!
