MaxTow Match Triple Dashboard Gauge Package for 2003-2005 Dodge Ram Cummins

  • Free Shipping Over $50

    Free Shipping Over $50

  • Easy Returns

    Easy Returns

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

  • Your Price: $369.99

    Item Number:
    MT-D24-FMD3-PKG
    UPC:
    842559134030
    Make:
    Dodge
    Model:
    Ram
    Pod:
    Triple
    Size:
    52mm
    Mount:
    Dashboard
    Color:
    Black
    Year Range:
    2003 - 2005
    Year:
    2003
    Year:
    2004
    Year:
    2005
    Gauge Series:
    MaxTow Match 3rd Gen Cummins Series
    GoogleTitle:
    MaxTow Match 03-05 Dodge 5.9 24 Valve Cummins Ram 2500 3500 Teal LED Diesel Gauge Set - Triple Dashboard Panel Pod - Analog & Digital Readings
    maxtowmatch-fmd3:
    true
    In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • Free Shipping Over $50

    Free Shipping Over $50

  • Easy Returns

    Easy Returns

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

  • Overview

    Match your 3rd Gen Cummins Gauge Cluster with MaxTow Match 3rd Gen Cummins Triple Gauge Dashboard Packages for any 2003-2005 Dodge Ram 2500 & 3500 24 Valve diesel truck. Experience full customization with a gauge package combining a factory fitted Triple Dodge Ram Dash Gauge Pod and (3) 2-1/16” (52mm) MaxTow Match 3rd Gen Cummins Gauges. Round out your custom gauge package with optional accessories including adapters and wiring kits. Get ready to hit the road and Tow to the Max®


    Gauge Series Details

    MaxTow Match for 3rd Gen Cummins Gauge Series Details
    MaxTow Match for 3rd Gen Cummins Gauge Series Details

    MaxTow Match 3rd Gen Cummins Series Gauges feature a white gauge dial, clear flat lens, and matching faceplate design including a matching needle cap like the factory 3rd Gen Cummins Gauge Cluster. View readings on an ultra-bright Double Vision analog and digital LED display. The analog display has factory matched teal backlighting and an illuminated red needle equipped for smooth needle movement and accurate readings. Take digital numerical readouts on the corresponding teal digital display at the same time.

    MaxTow Gauge Wiring
    MaxTow Match 3rd Gen Gauge Wiring

    MaxTow Match 3rd Gen Cummins Gauges come complete with wiring needed for installation in addition to electronic sensors for gauges that require a sender. Included power and sensor harnesses feature extended lengths for added convenience and flexibility. Both harnesses effortlessly connect to the back of the gauge by utilizing Plug and Play connectivity. Any required mounting hardware is provided in addition to Installation Instructions and Free Lifetime Tech Support to assist with any questions during the process.


    Factory Spec Styling

    MaxTow Match for 3rd Gen Cummins Gauge Comparison to Factory Dash Cluster
    MaxTow Match for 3rd Gen Cummins Gauge Comparison to Factory Dash Cluster

    The MaxTow Match Series features a line of gauges designed specifically for the 3rd Gen Cummins which are virtually identical to the look of your factory 3rd Gen Cummins Gauge Cluster. Add aftermarket 5.9 Cummins Gauges to the Dodge Ram dashboard for the ultimate monitoring experience. MaxTow Match 3rd Gen Cummins Gauges deliver an OEM style that enhances the interior of any 2003-2005 Dodge Ram 24v 2500 & 3500 while accurately tracking critical engine readings.


    3rd Gen Cummins Gauge Pod Details

    The Dodge Ram Dash Gauge Pod is made specifically for any 2003-2005 3rd Gen Ram 2500 & 3500 with a 5.9 Cummins. This triple gauge dashboard pod is factory fitted, featured in black and mounts to the storage tray area below the radio and HVAC controls. Install (3) 2-1/16” (52mm) gauges that will be angled towards the driver for easier viewing. Custom aluminum brackets are included that secure the gauges to the Cummins Gauge Pod, and the pod to your Ram truck’s dashboard. Fits: 03, 04, 05 Dodge Ram 24 Valve.

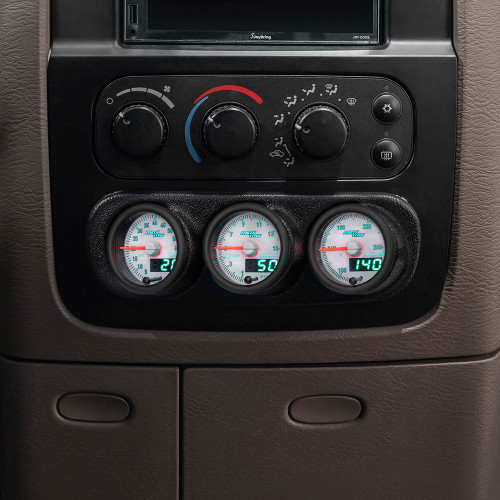

    Dodge Ram Installed Gauge Pod
    • Mounts to Storage Tray Area of the 2003-2005 Dodge Ram
    • Quick-Glance Readings from an Optimal Location
    • Ultra-Bright LED Gauges Enhance Your Ram Truck’s Interior
    • Gauges Angled Towards the Driver for Easy Viewing
    • Custom Aluminum Brackets Included for Installation
    Dodge Ram Gauge Pod
    • OEM Style Black Dodge Ram Dash Gauge Pod
    • Holds (3) 2-1/16” (52mm) Gauges
    • Crafted from ABS Plastic to Be Extremely Durable
    • Factory Fitted to 2003-2005 Ram Cummins
    • Paintable Using ABS Plastic Paint for a Custom Finish

    Diesel Tech Picks

    Our Diesel Techs have years of experience when it comes to choosing the right gauges for your 3rd Generation Dodge Ram. Here you’ll find their top choices based on performance, reliability, and how efficient these gauges will be in providing you with responsive and accurate feedback on your 5.9 Cummins diesel engine. You’ll have everything needed for monitoring to ensure that your Ram 2500 or 3500 continues to run optimally for years to come.

    60 PSI Boost
    60 PSI Boost
    • Reads Boost from 0 - 60 PSI
    • 1/8-27 NPT Electronic Pressure Sensor
    • 9' Sensor & 5’ Power Wire Harnesses
    1500° F Pyrometer EGT
    1500° F Pyrometer EGT
    • Reads Exhaust Temperature from 0 - 1500° Fahrenheit
    • Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
    • Includes 5' Power & 6' Sensor Wire Harnesses
    • Waterproof EGT Probe to Sensor Harness Connector
    30 PSI Fuel Pressure
    30 PSI Fuel Pressure
    • Reads Fuel Pressure from 0 - 30 PSI
    • 1/8-27 NPT Electronic Fuel Pressure Sensor
    • 9' Sensor & 5' Power Wire Harnesses
    Transmission Temperature
    Transmission Temperature
    • Reads Transmission Temperature from 80 - 260° Fahrenheit
    • 1/8-27 NPT Electronic Temperature Sensor
    • 9' Sensor & 5' Power Harnesses
    • Waterproof Sensor to Sensor Harness Connector

    Fitment Details

    MaxTow Match for Made Specifically for the 3rd Gen Cummins
    MaxTow Match for Made Specifically for the 3rd Gen Cummins

    Each 3rd Gen Cummins Gauge Pod is factory fitted to 2003-2005 Dodge Ram 24 Valve Full Size Trucks. That includes any individual model years in this range of 2500 & 3500 pickups with a 5.9 Cummins. Combined with a straightforward installation process, this Dodge Ram Dash Gauge Pod will seamlessly match the factory interior.

    Year Make Model Engine
    2003 Dodge Ram, 2500, 3500 24 Valve 5.9L Cummins
    2004 Dodge Ram, 2500, 3500 24 Valve 5.9L Cummins
    2005 Dodge Ram, 2500, 3500 24 Valve 5.9L Cummins
    1/8-27 NPT Drill & Tap Set
    1/8-27 NPT Drill & Tap Set
    • Used for Installing EGT Probe, Boost Fittings or Boost Sensor
    • Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT
    • Includes Size R Drill Bit & 1/8 NPT Tap
    Boost Bolt Adapter for 5.9L Cummins
    Boost Bolt Adapter for 5.9L Cummins
    • Quick & Easy Install of Boost Hose or Sensor into the Intake Manifold
    • Replaces the Manifold Horn Bolt
    • No Drilling & Tapping Required
    • Female 1/8-27 NPT Thread for Fittings/Sensor
    • Fits 1998.5-2007.5 5.9L Cummins
    Banjo Bolt Adapter for 24 Valve Cummins
    Banjo Bolt Adapter for 24 Valve Cummins
    • Easy Install of Fuel Pressure Sensor to Fuel Filter Housing
    • Replaces the Factory Banjo Bolt
    • Includes 2 Crush Washers for Secure Fit
    • Female 1/8-27 NPT Thread for Sensor
    • Fits 1998.5-2007.5 Dodge Ram 24 Valve Cummins
    Snubber Valve
    Snubber Valve
    • Regulates, Normalizes & Eliminates Fuel Pressure Spikes During Startup
    • Protects Pressure Sensor from Spikes/Water Hammer Effect
    • Installs Between Fuel Filter Housing & Sensor
    • High-Quality Brass Design – Built to Last
    • Male & Female 1/8-27 NPT Threads
    Banjo Bolt + Snubber Valve Combo for 24 Valve Cummins
    Banjo Bolt + Snubber Valve Combo for 24 Valve Cummins
    • Easy Install of Fuel Pressure Sensor to Fuel Filter Housing
    • All-in-One Design – Less Chance of Leaks Between Fittings
    • Snubber Valve Protects Pressure Sensor from Spikes/Water Hammer Effect
    • Replaces the Factory Banjo Bolt
    • Includes 2 Crush Washers for Secure Fit
    • Female 1/8-27 NPT Thread for Sensor
    • Fits 1998.5-2007.5 Dodge Ram 24 Valve Cummins
    Big Line Kit for 1998.5-2007 Dodge Ram 5.9L Cummins
    Big Line Kit for 1998.5-2007 Dodge Ram 5.9L Cummins
    • Allows Installation of Fuel Pressure Sensor into Factory Fuel System
    • Replaces the Restrictive Factory Line with 3/8” Rubber Hose Between Fuel Filter Housing & Injection Pump
    • Includes 3/8” T-Fitting, 90° Fittings, AN Adapters & Hose Clamps
    • Female 1/8-27 NPT Thread Adapter on T-Fitting for Sensor
    • Fits 1998.5-2007 Dodge Ram 5.9L Cummins
    Test Port Adapter for 47RE & 48RE
    Test Port Adapter for 47RE & 48RE
    • Quick & Easy Install of Temperature Sensor to Transmission Test Port
    • Threads onto Temperature Sensor for Protection from Internal Transmission Parts
    • No Modifications to Transmission Necessary
    • Female 1/8-27 NPT Thread for Sensor
    • Fits 1994-2007.5 Dodge Ram Cummins
    • Does Not Fit 68RFE Transmission
    18ft Pressure Sensor Harness
    18ft Pressure Sensor Harness
    • Extends the Length of 9’ Harness Included with Gauge to 18’
    • Commonly Used on Trucks with Aftermarket Lift Pump Installed
    • Plug & Play
    Rail Pressure Pigtail Harness
    Rail Pressure Pigtail Harness
    • Quick & Easy Installation Without Having to Splice or Cut into Factory Wires
    • Connects Directly to Common Rail Pressure Sensor
    • Plug & Play
    • Fits 2003-2012 5.9L & 6.7L Cummins
    Expandable Circuit
    Expandable Circuit
    • Quick & Easy Way to Power Gauges Directly from the Fuse Panel
    • Used for Constant & Switched 12 Volt Power for Gauges
    • Includes 4 Amp Fuse for Circuit Protection
    MaxTow 3 Gauge Power Wire Harness
    MaxTow 3 Gauge Power Wire Harness
    • Used to Easily Power All 3 Gauges from 1 Harness that Connects to Power
    • Daisy Chain Feature with Each Connector Plugging into Each Gauge
    • Prevents Wire Clutter in Fuse Panel, Under the Hood or in the Pillar Pod
    • 6-1/2’ of Total Wire

    Instruction Options

    MaxTow Match 3rd Gen Cummins Series Triple Gauge Dashboard Packages include instructions that provide complete detail on how to install 3rd Gen Cummins Gauges and a Cummins Gauge Pod for the 2003-2005 Dodge Ram 5.9 Cummins 24v 2500 & 3500. You can also view installation videos which include step-by-step tutorials and useful tips on how to install many MaxTow products.

    Gauge Pod Install Guide Gauge Pod PDF Instructions Gauge Set Install Guide Gauge Set PDF Instructions
    Gauge Types

    Select Your Gauges

    The MaxTow Match 3rd Gen Cummins Series is designed specifically for 2003-2009 Dodge Ram 24v 5.9 Cummins and 6.7 Cummins 2500 & 3500 pickups. 3rd Gen Cummins Gauges feature factory spec styling to match the gauges from the factory dashboard 3rd Gen Cummins gauge cluster. Select MaxTow Match Gauges for your Custom Gauge and Pod Package to monitor diesel engine readouts. Easily view quick-glance readouts from the A-pillar and optimize the efficiency of your 5.9 Cummins or 6.7 Cummins.

    Tech Pick
    60 PSI Boost
    60 PSI Boost
    • Reads Boost from 0 - 60 PSI
    • 1/8-27 NPT Electronic Pressure Sensor
    • 9' Sensor & 5’ Power Wire Harnesses
    Tech Pick
    1500° F Pyrometer EGT
    1500° F Pyrometer EGT
    • Reads Exhaust Temperature from 0 - 1500° Fahrenheit
    • Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
    • Includes 5' Power & 6' Sensor Wire Harnesses
    • Waterproof EGT Probe to Sensor Harness Connector
    Tech Pick
    2200° F Exhaust Gas Temperature
    2200° F Exhaust Gas Temperature
    • Reads Exhaust Temperature from 200 - 2200° Fahrenheit
    • Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
    • Includes 5' Power & 6' Sensor Wire Harnesses
    • Waterproof EGT Probe to Sensor Harness Connector
    Tech Pick
    30 PSI Fuel Pressure
    30 PSI Fuel Pressure
    • Reads Fuel Pressure from 0 - 30 PSI
    • 1/8-27 NPT Electronic Fuel Pressure Sensor
    • 9' Sensor & 5' Power Wire Harnesses
    Tech Pick
    Transmission Temperature
    Transmission Temperature
    • Reads Transmission Temperature from 80 - 260° Fahrenheit
    • 1/8-27 NPT Electronic Temperature Sensor
    • 9' Sensor & 5' Power Harnesses
    • Waterproof Sensor to Sensor Harness Connector
    Tech Pick
    Rail Pressure
    Rail Pressure
    • Reads Fuel Rail Pressure from 0 - 30,000 PSI
    • 9' Sensor & 5' Power Wire Harnesses
    • Compatible with 2004-2018 Dodge Ram 5.9L & 6.7L Cummins Engines
    Add-Ons

    Optional Installation Accessories:

    Looking for an adapter that helps simplify the install process? Or maybe you need a little more slack as you’re setting up your gauge kit. MaxTow carries a wide variety of accessories to help with the installation of your gauge package. Choose from a diverse selection of adapters, wiring harnesses, drill & tap kits and more that will cover everything you need and make the process even easier as you install your gauges.

    Instructions
