Blue MaxTow Triple Dashboard Gauge Package for 2003-2005 Dodge Ram Cummins

  • Delivery by Xmas

    Delivery By ChristmasCONTIGUOUS US ONLY

  • Extended Holiday Returns

    Extended Holiday ReturnsACCEPTED UNTIL JANUARY 31ST

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

  • Your Price: $299.99

    Item Number:
    MT-D24-BDV-PKG
    UPC:
    842559119143
    Make:
    Dodge
    Model:
    Ram
    Pod:
    Triple
    Size:
    52mm
    Mount:
    Dashboard
    Color:
    Black
    Year Range:
    2003 - 2005
    Year:
    2003
    Year:
    2004
    Year:
    2005
    Gauge Series:
    Black & Blue MaxTow Series
    Gauge Series:
    White & Blue MaxTow Series
    GoogleTitle:
    MaxTow 03-05 Dodge 5.9 24 Valve Cummins Ram 2500 3500 Blue LED Diesel Gauge Set - Triple Dashboard Pod & Mounting Kit - Analog & Digital Readings
    In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • Delivery by Xmas

    Delivery By ChristmasCONTIGUOUS US ONLY

  • Extended Holiday Returns

    Extended Holiday ReturnsACCEPTED UNTIL JANUARY 31ST

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

  • Overview

    MaxTow's Blue Double Vision® Series Triple Gauge Package for any 2003-2005 Dodge Ram 2500/3500 Full Size Truck helps you to maximize the performance of your 24v 5.9L Cummins. This custom gauge package features a choice of 3 gauges and a Cummins triple dash pod made specifically for this year range. The included black Dodge Ram triple dashboard panel pod is made to fit the storage tray location below the radio and HVAC controls. The Double Vision® Gauge Series comes equipped with an ultra-bright blue digital and analog LED display with the choice of a black or white gauge face. Get ready to hit the road and Tow to the Max®!


    Gauge Series Details

    MaxTow Gauge Series Details
    MaxTow Gauge Series Details

    Color and style combinations are available for complete customization of these high-performance 2-1/16” (52mm) gauges. The Double Vision® Gauge Series gives you the classic look of an analog gauge with an illuminated red needle while simultaneously displaying an easy-to-read digital numeric readout. Choose either a black or white gauge face as a background for showcasing the blue LED display. These gauges feature stepper motor technology which allows for smooth needle movement and extremely accurate gauge readings. You’ll also have the option of (3) daytime and (3) nighttime dimming modes with customizable brightness settings (low, medium, high) for each. Choose from a variety of different gauge types which will give you the ability to fully customize this gauge package and monitor multiple engine applications.

    MaxTow Gauge Wiring
    MaxTow Gauge Wiring

    Each gauge comes complete with wiring needed for installation as well as electronic sensors for gauges that require a sensor. Included power and sensor harnesses feature extended lengths for more flexibility during installation. Both harnesses easily connect to the back of the gauge by utilizing effortless Plug and Play connectivity. Sensor and sensor wires are also equipped with waterproof connectors to ensure a leak-free seal. Any required mounting hardware is provided in addition to installation instructions and free lifetime tech support to walk you through the process step by step.


    Pod Details

    The included triple dashboard panel pod is made specifically for the 2003-2005 Dodge Ram 2500/3500 5.9L Cummins. This dashboard panel gauge pod mounts (3) 2-1/16” (52mm) gauges to the storage tray area, below the radio and HVAC controls, while angling the gauges towards the driver for easy viewing. These Dodge Ram dashboard pods are manufactured from premium quality ABS plastic and can also be painted using ABS plastic paint for a custom fit and finish. Custom aluminum brackets are included to secure the gauges to the pod, and the pod to your Ram truck’s dashboard.

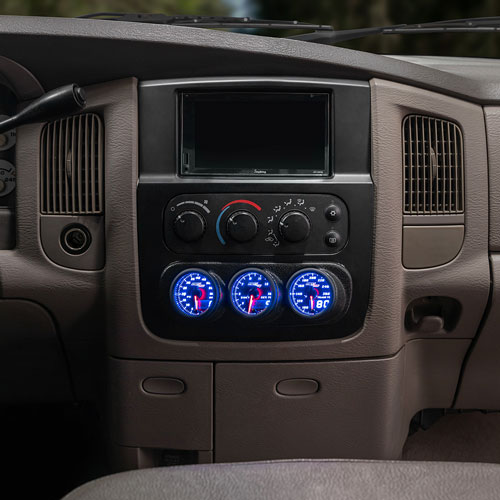

    Dodge Ram Installed Gauge Pod
    • Mounts 3 Gauges to the Dashboard Storage Tray Location
    • Gauges Angled Toward the Driver from a Convenient Location
    • Pinpoint-Precise Readings on a Wide Range of Applications
    • Ultra-Bright LED Gauges that Enhance Your Truck's Interior
    • Includes All Required Mounting Hardware and Instructions
    Dodge Ram Gauge Pod
    • Black Triple Dashboard Panel Gauge Pod
    • Holds (3) 2-1/16” (52mm) Gauges
    • Extremely Durable and Crafted from High Quality ABS Plastic
    • Custom-Made to Fit the 03-05 Dodge Ram Full Size Truck
    • Mounting Brackets Secure the Gauges to the Pod

    Diesel Tech Picks

    Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your truck. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with everything you need to monitor and ensure that your truck continues to run optimally for years to come.

    60 PSI Boost
    60 PSI Boost
    • Reads Boost from 0 - 60 PSI
    • 1/8-27 NPT Electronic Pressure Sensor
    • 9' Sensor & 5’ Power Wire Harnesses
    1500° F Pyrometer EGT
    1500° F Pyrometer EGT
    • Reads Exhaust Temperature from 0 - 1500° Fahrenheit
    • Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
    • Includes 5' Power & 6' Sensor Wire Harnesses
    • Waterproof EGT Probe to Sensor Harness Connector
    30 PSI Fuel Pressure
    30 PSI Fuel Pressure
    • Reads Fuel Pressure from 0 - 30 PSI
    • 1/8-27 NPT Electronic Fuel Pressure Sensor
    • 9' Sensor & 5' Power Wire Harnesses
    Transmission Temperature
    Transmission Temperature
    • Reads Transmission Temperature from 80 - 260° Fahrenheit
    • 1/8-27 NPT Electronic Temperature Sensor
    • 9' Sensor & 5' Power Harnesses
    • Waterproof Sensor to Sensor Harness Connector

    Fitment Details

    Each pod is custom-made to be a factory fit for the 2003-2005 Dodge Ram Full Size Truck. That includes any individual model years within this range for the 2500 or 3500 24v 5.9L Cummins. Combined with a straightforward installation process, this Cummins pillar gauge pod will replace the factory A-pillar and seamlessly integrate with the factory interior.

    Year Make Model Engine
    2003 Dodge Ram, 2500, 3500 24 Valve 5.9L Cummins
    2004 Dodge Ram, 2500, 3500 24 Valve 5.9L Cummins
    2005 Dodge Ram, 2500, 3500 24 Valve 5.9L Cummins
    1/8-27 NPT Drill & Tap Set
    1/8-27 NPT Drill & Tap Set
    • Used for Installing EGT Probe, Boost Fittings or Boost Sensor
    • Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT
    • Includes Size R Drill Bit & 1/8 NPT Tap
    Boost Bolt Adapter for 5.9L Cummins
    Boost Bolt Adapter for 5.9L Cummins
    • Quick & Easy Install of Boost Hose or Sensor into the Intake Manifold
    • Replaces the Manifold Horn Bolt
    • No Drilling & Tapping Required
    • Female 1/8-27 NPT Thread for Fittings/Sensor
    • Fits 1998.5-2007.5 5.9L Cummins
    Banjo Bolt Adapter for 24 Valve Cummins
    Banjo Bolt Adapter for 24 Valve Cummins
    • Easy Install of Fuel Pressure Sensor to Fuel Filter Housing
    • Replaces the Factory Banjo Bolt
    • Includes 2 Crush Washers for Secure Fit
    • Female 1/8-27 NPT Thread for Sensor
    • Fits 1998.5-2007.5 Dodge Ram 24 Valve Cummins
    Snubber Valve
    Snubber Valve
    • Regulates, Normalizes & Eliminates Fuel Pressure Spikes During Startup
    • Protects Pressure Sensor from Spikes/Water Hammer Effect
    • Installs Between Fuel Filter Housing & Sensor
    • High-Quality Brass Design – Built to Last
    • Male & Female 1/8-27 NPT Threads
    Banjo Bolt + Snubber Valve Combo for 24 Valve Cummins
    Banjo Bolt + Snubber Valve Combo for 24 Valve Cummins
    • Easy Install of Fuel Pressure Sensor to Fuel Filter Housing
    • All-in-One Design – Less Chance of Leaks Between Fittings
    • Snubber Valve Protects Pressure Sensor from Spikes/Water Hammer Effect
    • Replaces the Factory Banjo Bolt
    • Includes 2 Crush Washers for Secure Fit
    • Female 1/8-27 NPT Thread for Sensor
    • Fits 1998.5-2007.5 Dodge Ram 24 Valve Cummins
    Big Line Kit for 1998.5-2007 Dodge Ram 5.9L Cummins
    Big Line Kit for 1998.5-2007 Dodge Ram 5.9L Cummins
    • Allows Installation of Fuel Pressure Sensor into Factory Fuel System
    • Replaces the Restrictive Factory Line with 3/8” Rubber Hose Between Fuel Filter Housing & Injection Pump
    • Includes 3/8” T-Fitting, 90° Fittings, AN Adapters & Hose Clamps
    • Female 1/8-27 NPT Thread Adapter on T-Fitting for Sensor
    • Fits 1998.5-2007 Dodge Ram 5.9L Cummins
    Test Port Adapter for 47RE & 48RE
    Test Port Adapter for 47RE & 48RE
    • Quick & Easy Install of Temperature Sensor to Transmission Test Port
    • Threads onto Temperature Sensor for Protection from Internal Transmission Parts
    • No Modifications to Transmission Necessary
    • Female 1/8-27 NPT Thread for Sensor
    • Fits 1994-2007.5 Dodge Ram Cummins
    • Does Not Fit 68RFE Transmission
    18ft Pressure Sensor Harness
    18ft Pressure Sensor Harness
    • Extends the Length of 9’ Harness Included with Gauge to 18’
    • Commonly Used on Trucks with Aftermarket Lift Pump Installed
    • Plug & Play
    Rail Pressure Pigtail Harness
    Rail Pressure Pigtail Harness
    • Quick & Easy Installation Without Having to Splice or Cut into Factory Wires
    • Connects Directly to Common Rail Pressure Sensor
    • Plug & Play
    • Fits 2003-2012 5.9L & 6.7L Cummins
    Expandable Circuit
    Expandable Circuit
    • Quick & Easy Way to Power Gauges Directly from the Fuse Panel
    • Used for Constant & Switched 12 Volt Power for Gauges
    • Includes 4 Amp Fuse for Circuit Protection
    MaxTow 3 Gauge Power Wire Harness
    MaxTow 3 Gauge Power Wire Harness
    • Used to Easily Power All 3 Gauges from 1 Harness that Connects to Power
    • Daisy Chain Feature with Each Connector Plugging into Each Gauge
    • Prevents Wire Clutter in Fuse Panel, Under the Hood or in the Pillar Pod
    • 6-1/2’ of Total Wire

    Instruction Options

    This MaxTow Double Vision® Series Triple Gauge Package comes with product instructions that provide complete details on how to install your gauges and pod for the 2003-2005 Dodge Ram 2500/3500 Full Size Truck with a 24v 5.9L Cummins. You can also view our installation videos which include step-by-step tutorials and useful tips on how to install several MaxTow products.

    Gauge Pod Install Guide Gauge Pod PDF Instructions Gauge Set Install Guide Gauge Set PDF Instructions
    Gauge Types

    Select Your Gauges

    Select your gauges from a variety of different gauge types below which are available for this MaxTow Double Vision® Series Gauge Package. You can also reference our Tech Picks at the beginning of this list for our top recommendations that are specific to this vehicle. With gauges made to monitor a wide range of engine applications, MaxTow is sure to have the types of gauge you’re looking for as part of this custom package.

    Tech Pick
    30 PSI Boost/Vacuum
    30 PSI Boost/Vacuum
    • Reads Boost from 0 - 30 PSI
    • Reads Vacuum & Compression Levels from -30 - 0 inHG
    • 3' Hose & T-Fitting
    • 9' Sensor & 5' Power Wire Harnesses
    Tech Pick
    35 PSI Boost
    35 PSI Boost
    • Reads Boost from 0 - 35 PSI
    • 1/8-27 NPT Electronic Pressure Sensor
    • 9' Sensor & 5' Power Wire Harnesses
    Tech Pick
    60 PSI Boost
    60 PSI Boost
    • Reads Boost from 0 - 60 PSI
    • 1/8-27 NPT Electronic Pressure Sensor
    • 9' Sensor & 5’ Power Wire Harnesses
    Tech Pick
    100 PSI Boost
    100 PSI Boost
    • Reads Boost from 0 - 100 PSI
    • 1/8-27 NPT Electronic Pressure Sensor
    • 9' Sensor & 5’ Power Wire Harnesses
    Tech Pick
    Needle Wideband Air/Fuel Ratio
    Wideband Air/Fuel Ratio
    • Reads Air/Fuel Ratio from 10.0 - 20.0
    • Wideband Oxygen Sensor
    • Digital Wideband Controller Unit with Data Logging
    • Weld-In Sensor Bung
    • Power & Sensor Wire Harnesses
    Tech Pick
    Oil Pressure
    Oil Pressure
    • Reads Oil Pressure from 0 - 100 PSI
    • 1/8-27 NPT Electronic Oil Pressure Sensor
    • 9' Sensor & 5' Power Wire Harnesses
    Tech Pick
    Volt Gauge
    Volt Gauge
    • Reads Vehicle Electrical System Voltages from 8 - 18 DC Volts
    • 5' Power Wire Harness
    Tech Pick
    Water (Coolant) Temperature
    Water (Coolant) Temperature
    • Reads Water Temperature from 100 - 280° Fahrenheit
    • 1/8-27 NPT Electronic Temperature Sensor
    • 9' Sensor & 5' Power Harnesses
    • Waterproof Sensor to Sensor Harness Connector
    Tech Pick
    Oil Temperature
    Oil Temperature
    • Reads Oil Temperature from 100 - 280° Fahrenheit
    • 1/8-27 NPT Electronic Temperature Sensor
    • 9' Sensor & 5' Power Harnesses
    • Waterproof Sensor to Sensor Harness Connector
    Tech Pick
    1500° F Pyrometer EGT
    1500° F Pyrometer EGT
    • Reads Exhaust Temperature from 0 - 1500° Fahrenheit
    • Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
    • Includes 5' Power & 6' Sensor Wire Harnesses
    • Waterproof EGT Probe to Sensor Harness Connector
    Tech Pick
    2200° F Exhaust Gas Temperature
    2200° F Exhaust Gas Temperature
    • Reads Exhaust Temperature from 200 - 2200° Fahrenheit
    • Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
    • Includes 5' Power & 6' Sensor Wire Harnesses
    • Waterproof EGT Probe to Sensor Harness Connector
    Tech Pick
    Tachometer
    Tachometer
    • Reads Vehicle’s RPM from 0 - 10,000
    • 1 - 10 Cylinder Setting Switch on Back of Gauge
    • 9’ Source & 5' Power Wire Harnesses
    Tech Pick
    15 PSI Fuel Pressure
    15 PSI Fuel Pressure
    • Reads Fuel Pressure from 0 - 15 PSI
    • 1/8-27 NPT Electronic Fuel Pressure Sensor
    • 9' Sensor & 5' Power Wire Harnesses
    Tech Pick
    30 PSI Fuel Pressure
    30 PSI Fuel Pressure
    • Reads Fuel Pressure from 0 - 30 PSI
    • 1/8-27 NPT Electronic Fuel Pressure Sensor
    • 9' Sensor & 5' Power Wire Harnesses
    Tech Pick
    100 PSI Fuel Pressure
    100 PSI Fuel Pressure
    • Reads Fuel Pressure from 0 - 100 PSI
    • 1/8-27 NPT Electronic Fuel Pressure Sensor
    • 9' Sensor & 5' Power Wire Harnesses
    Tech Pick
    Transmission Temperature
    Transmission Temperature
    • Reads Transmission Temperature from 80 - 260° Fahrenheit
    • 1/8-27 NPT Electronic Temperature Sensor
    • 9' Sensor & 5' Power Harnesses
    • Waterproof Sensor to Sensor Harness Connector
    Tech Pick
    Air Pressure
    Air Pressure
    • Reads Air Pressure from 0 - 200 PSI
    • 1/8-27 NPT Electronic Pressure Sensor
    • 9' Sensor & 5' Power Wire Harnesses
    Tech Pick
    Nitrous Pressure
    Nitrous Pressure
    • Reads NOS Pressure from 0 - 1,600 PSI
    • 1/8-27 NPT Electronic Pressure Sensor
    • 9' Sensor & 5' Power Wire Harnesses
    Tech Pick
    Rail Pressure
    Rail Pressure
    • Reads Fuel Rail Pressure from 0 - 30,000 PSI
    • 9' Sensor & 5' Power Wire Harnesses
    • Compatible with 2004-2018 Dodge Ram 5.9L & 6.7L Cummins Engines
    • Compatible with 2002-2016 GM 6.6L Duramax Engine
    Tech Pick
    HPOP Gauge
    HPOP Gauge
    • Reads HPOP from 0 - 4,000 PSI
    • 9' Sensor & 5' Power Wire Harnesses
    • Compatible with 7.3L & 6.0L Ford Power Stroke
    Tech Pick
    Differential Temperature
    Differential Temperature
    • Reads Diff Temperature from 100 - 250° Fahrenheit
    • 1/8-27 NPT Electronic Temperature Sensor
    • 9' Sensor & 5' Power Harnesses
    • Waterproof Sensor to Sensor Harness Connector
    Tech Pick
    Coolant Pressure
    Coolant Pressure
    • Reads Coolant Pressure from 0 - 35 PSI
    • 1/8-27 NPT Electronic Pressure Sensor
    • 9' Sensor & 5' Power Wire Harnesses
    Tech Pick
    Intake Temperature
    Intake Temperature
    • Reads Intake Temperature from 0 - 300° Fahrenheit
    • 3/8-18 NPT Electronic Air Temperature Sensor
    • 9' Sensor & 5' Power Harnesses
    • Waterproof Sensor to Sensor Harness Connector
    Tech Pick
    Ambient Air Temperature
    Ambient Air Temperature
    • Reads Outside Air Temperature from -20 - 120° Fahrenheit
    • Electronic Air Temperature Sensor
    • 18' Sensor & 5' Power Harnesses
    Tech Pick
    60 PSI Exhaust Pressure
    60 PSI Exhaust Pressure
    • Reads Drive Pressure from 0 - 60 PSI
    • 1/8-27 NPT Electronic Pressure Sensor
    • 5’ of 1/4” Copper Cooling Tubing
    • 9' Sensor & 5' Power Wire Harnesses
    Tech Pick
    100 PSI Exhaust Pressure
    100 PSI Exhaust Pressure
    • Reads Drive Pressure from 0 - 100 PSI
    • 1/8-27 NPT Electronic Pressure Sensor
    • 5’ of 1/4” Copper Cooling Tubing
    • 9' Sensor & 5' Power Wire Harnesses
    Tech Pick
    Fuel Level
    Fuel Level
    • Reads Truck’s Fuel Level from Empty, 1/4, 1/2, 3/4 & Full & 0 - 100%
    • 9' Sensor & 5' Power Wire Harnesses
    • Compatible with Gasoline & Diesel Fuel
    Add-Ons

    Optional Installation Accessories:

    Looking for an adapter that helps simplify the install process? Or maybe you need a little more slack as you’re setting up your gauge kit. MaxTow carries a wide variety of accessories to help with the installation of your gauge package. Choose from a diverse selection of adapters, wiring harnesses, drill & tap kits and more that will cover everything you need and make the process even easier as you install your gauges.

    Instructions
